404
Displaying guaranteed bandwidth settings
1. Select QoS > Wireless QoS from the navigation tree.
2. Click the Bandwidth Guarantee tab.
3. Click the specified radio unit to view the wireless services bound to the radio unit and the
guaranteed bandwidth setting for each wireless service.

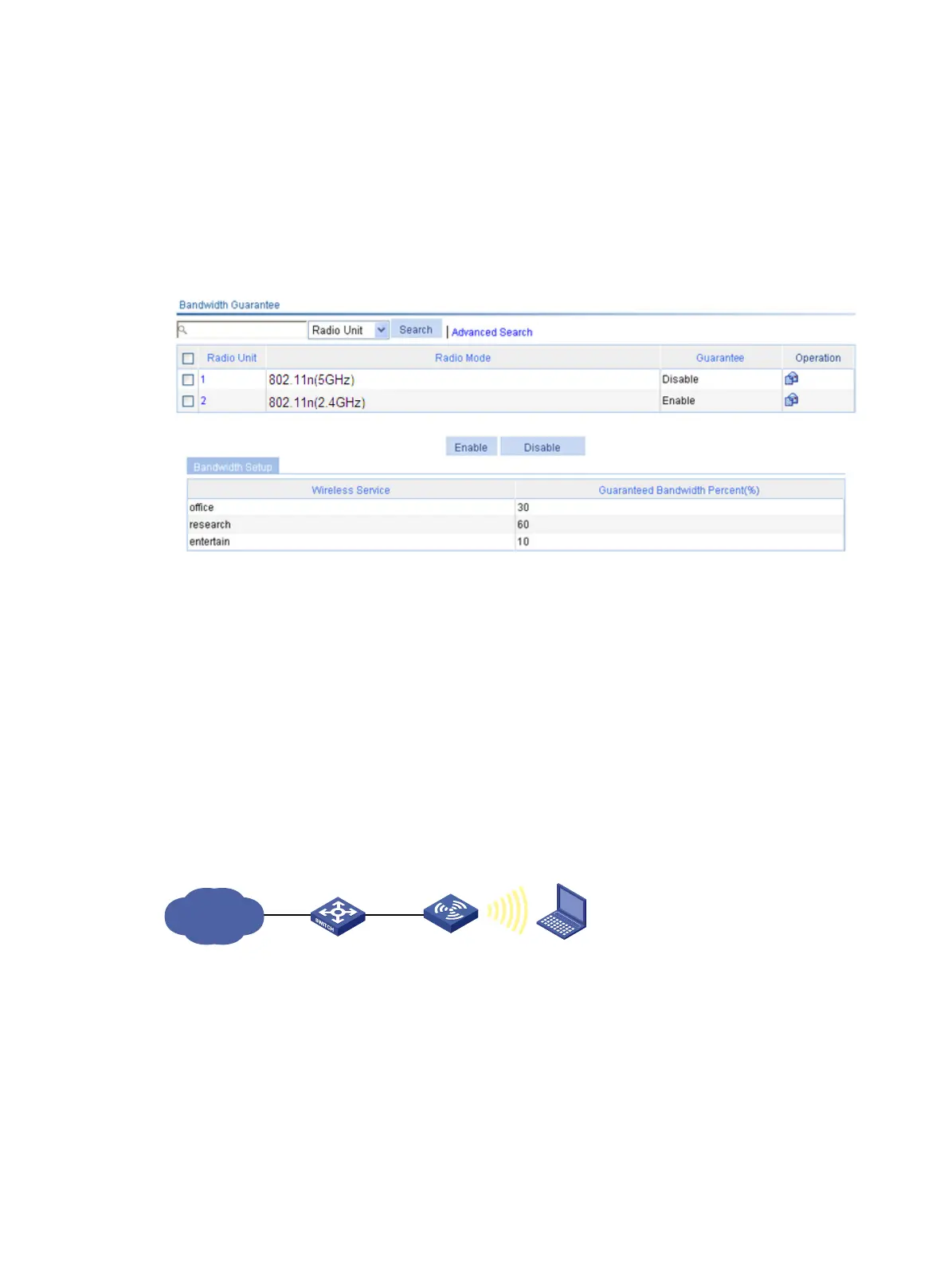

Figure 428 Displaying guaranteed bandwidth settings
Wireless QoS configuration examples
CAC service configuration example
Network requirements
As shown in Figure 429, a WMM-enabled AP accesses the Ethernet.
Enable CAC for AC-VO and AC-VI on the AP. To guarantee high priority clients (AC-VO and AC-VI clients)
sufficient bandwidth, use the user number-based admission policy to limit the number of access users to
10.
Figure 429 Network diagram
Configuration procedure
1. Configure the wireless service.
For related configurations, see "Configuring wireless service." You can follow the steps in the
related configuration example to configure the wireless service.
2. Configure wireless QoS:
a. Select QoS > Wireless QoS from the navigation tree.
By default, the QoS Service tab is displayed.
IP network
L2 switch
FAT AP
Client
