H3C WA Series User Manual

334

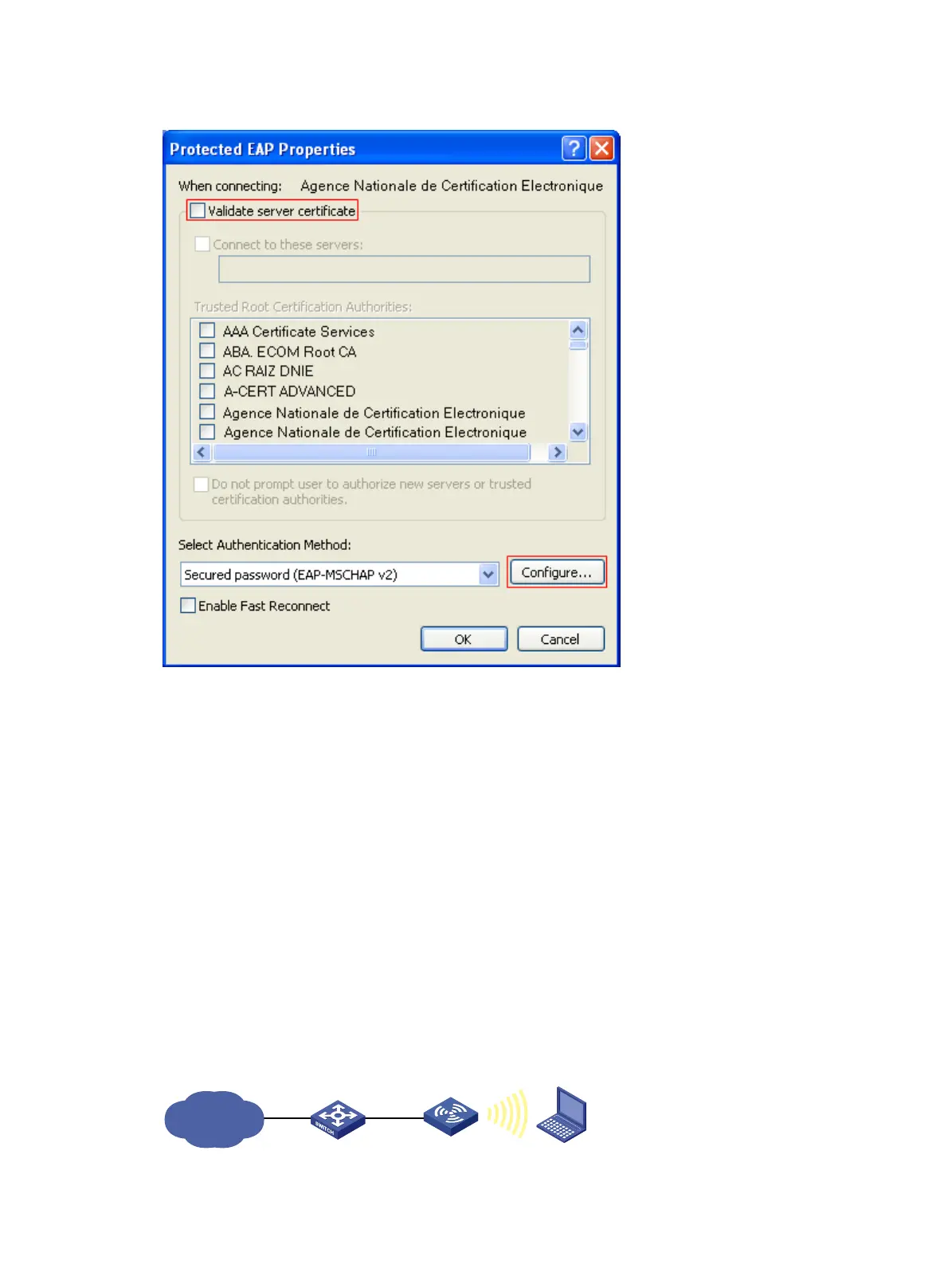

Figure 358 Configure the wireless card (III)
Verifying the configuration
• After the user enters the username user and password dot1x in the popup dialog box, the client can
associate with the AP and access the WLAN.
• You can view the online clients on the page you enter by selecting Summary > Client from the
navigation tree.
802.11n configuration example
Network requirements
As shown in Figure 359, deploy an 802.11n network to provide high bandwidth access for multi-media
applications.
• The AP provides a plain-text wireless service with SSID 11 n s e r v i c e .
• 802.11n (2.4 GHz) is adopted to inter-work with the existing 802.11g network and protect the
current investment.
Figure 359 Network diagram
IP network
L2 switch
FAT AP
Client
