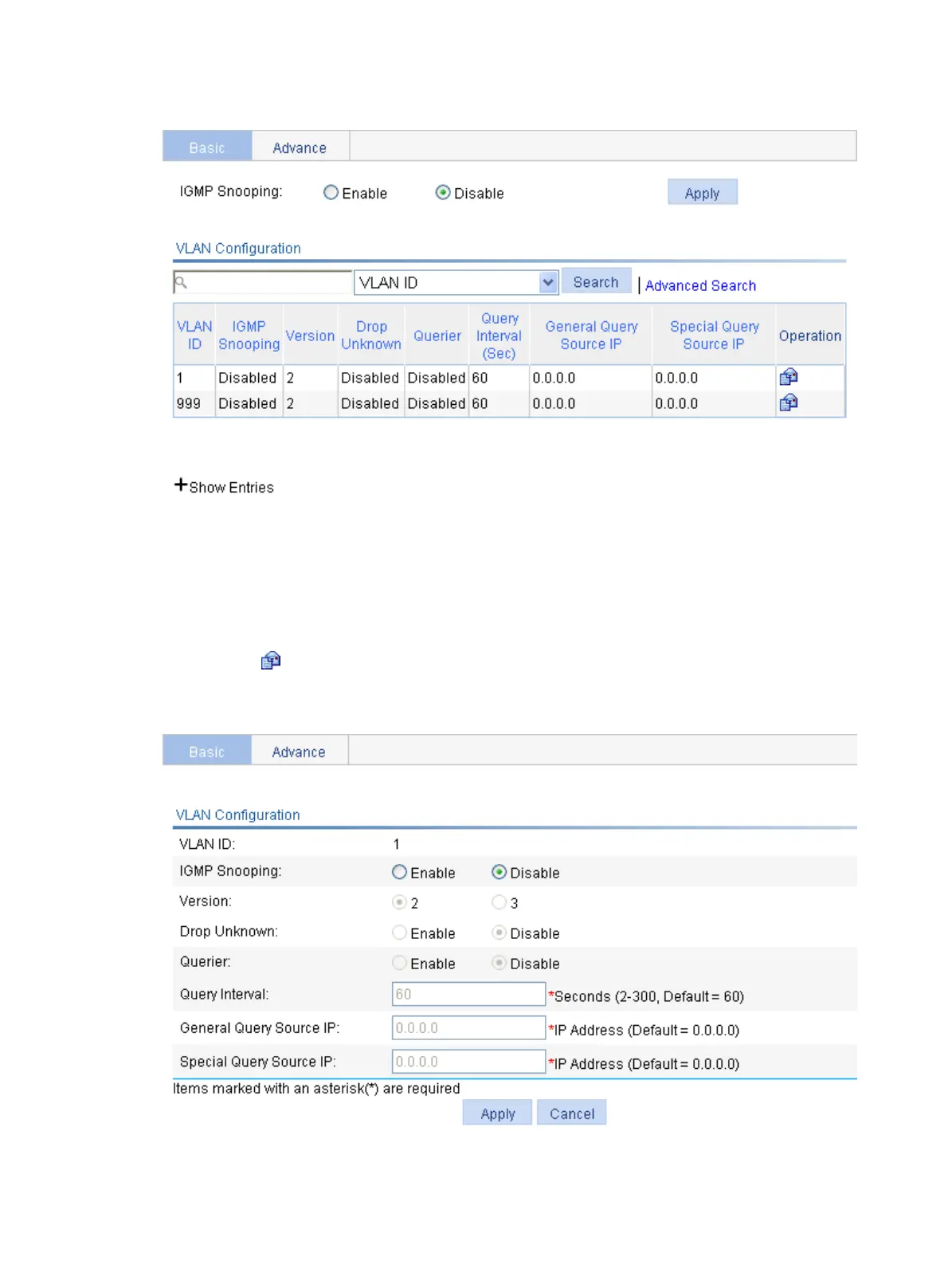

Figure 107 Basic IGMP snooping configurations

Configuring IGMP snooping on a VLAN

1. Select Network > IGMP snooping from the navigation tree to enter the basic configuration page

shown in Figure 107.

2. Click the

icon corresponding to the VLAN to enter the page you can configure IGMP snooping

in the VLAN, as shown in Figure 108.

Figure 108 Conf

igure IGMP snooping on the VLAN

3. Configure IGMP snooping as described in Table 50.
