380
Item Remarks
Inbound Policy Apply the QoS policy to the packets received by the wireless service.
Outbound Policy Apply the QoS policy to the packets sent by the wireless service.
Trust Mode
Set the priority trust mode:
• Untrust—Trusts the port priority.
• Dscp—Uses the DSCP values of received packets for mapping.
• 802.11e—Uses the 802.11e priority of received 802.11 packets for mapping.
QoS Priority Set the local precedence value.
ACL/QoS configuration example
Network requirements
As shown in Figure 404, in the WLAN, the FTP server (10.1.1.1/24) is connected to the AP, and the client
accesses the WLAN through the wireless service named service1.
Configure an ACL and a QoS policy to prevent the wireless hosts from accessing the FTP server from
8:00 to 18:00 every day:
1. Add an ACL to prevent the hosts from accessing the FTP server from 8:00 to 18:00 every day.
2. Configure a QoS policy to drop the packets matching the ACL.
3. Apply the QoS policy in the inbound direction of the wireless service named service1.

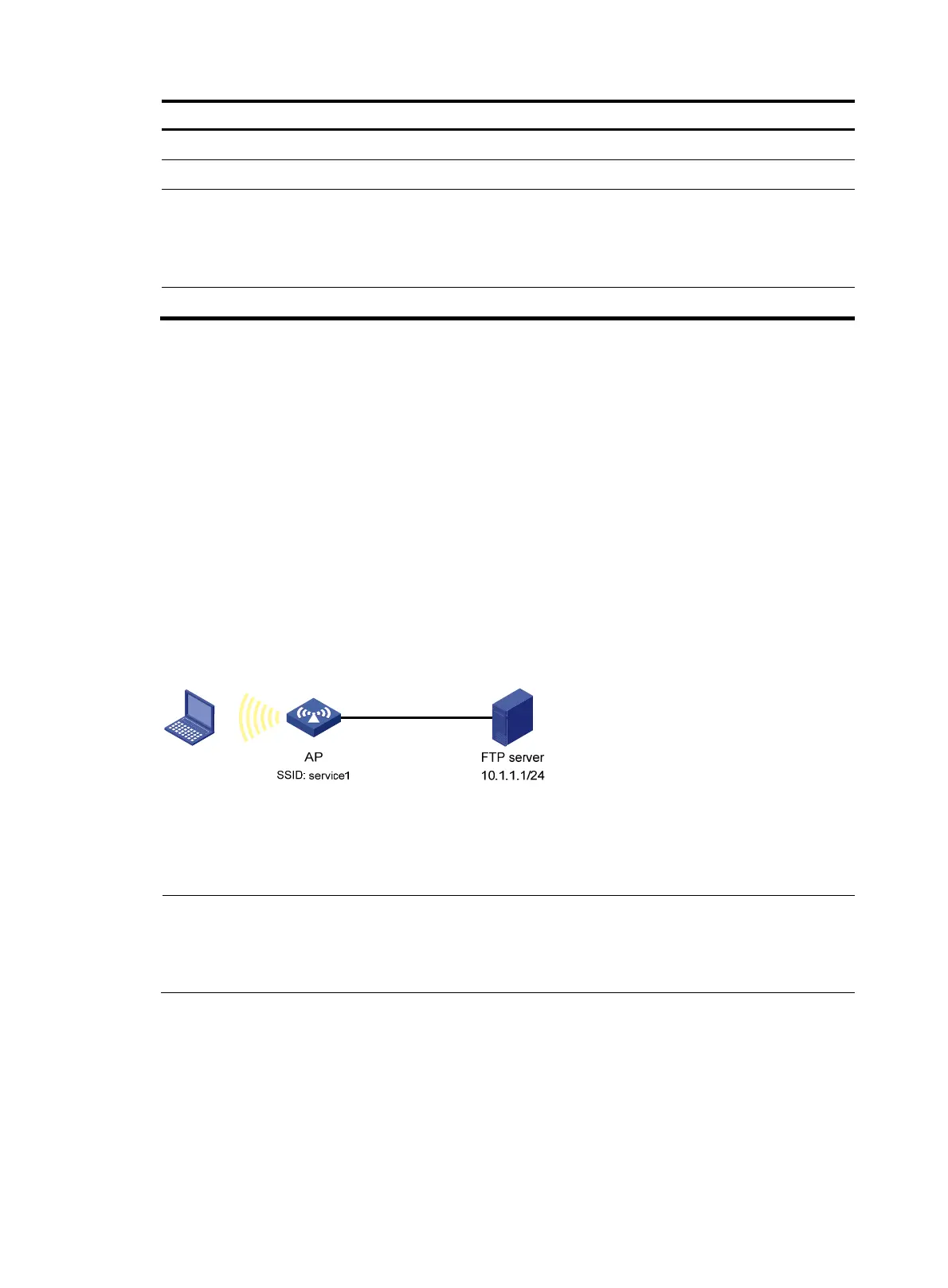

Figure 404 Network diagram
Configuration procedure
NOTE:
Before performing the following configurations, make sure that the AP has been configured with wireless
service service1. For more information about the wireless service confi
g
uration, see "Confi
g
urin
g
wireless
service."
1. Define a time range to cover the time range from 8:00 to 18:00 every day:
a. Select QoS > Time Range from the navigation tree.
b. Click the Add tab.
c. Enter the time range name test-time, select the Periodic Time Range option, set the Start Time
to 8:00 and the End Time to 18:00, and select the options Sun through Sat.
d. Click Apply.
