290
NOTE:
• A radio enabled with auto DFS and WDS works in a non-radar channel.
• When you select auto-DFS, if no WDS link is established, a temporary working channel is automaticall
selected for a radio. The validation time of the temporary working channel is from 10 to 20 seconds.
After the temporary working channel times out, a new temporary working channel is selected. The
information of channel switching between the automatically selected and temporary workin
channels
is saved in the channel switching information of the radio.
Enabling WDS service
1. Select Wireless Service > WDS from the navigation tree.
2. Select the WDS Setup tab to enter the WDS setup page.

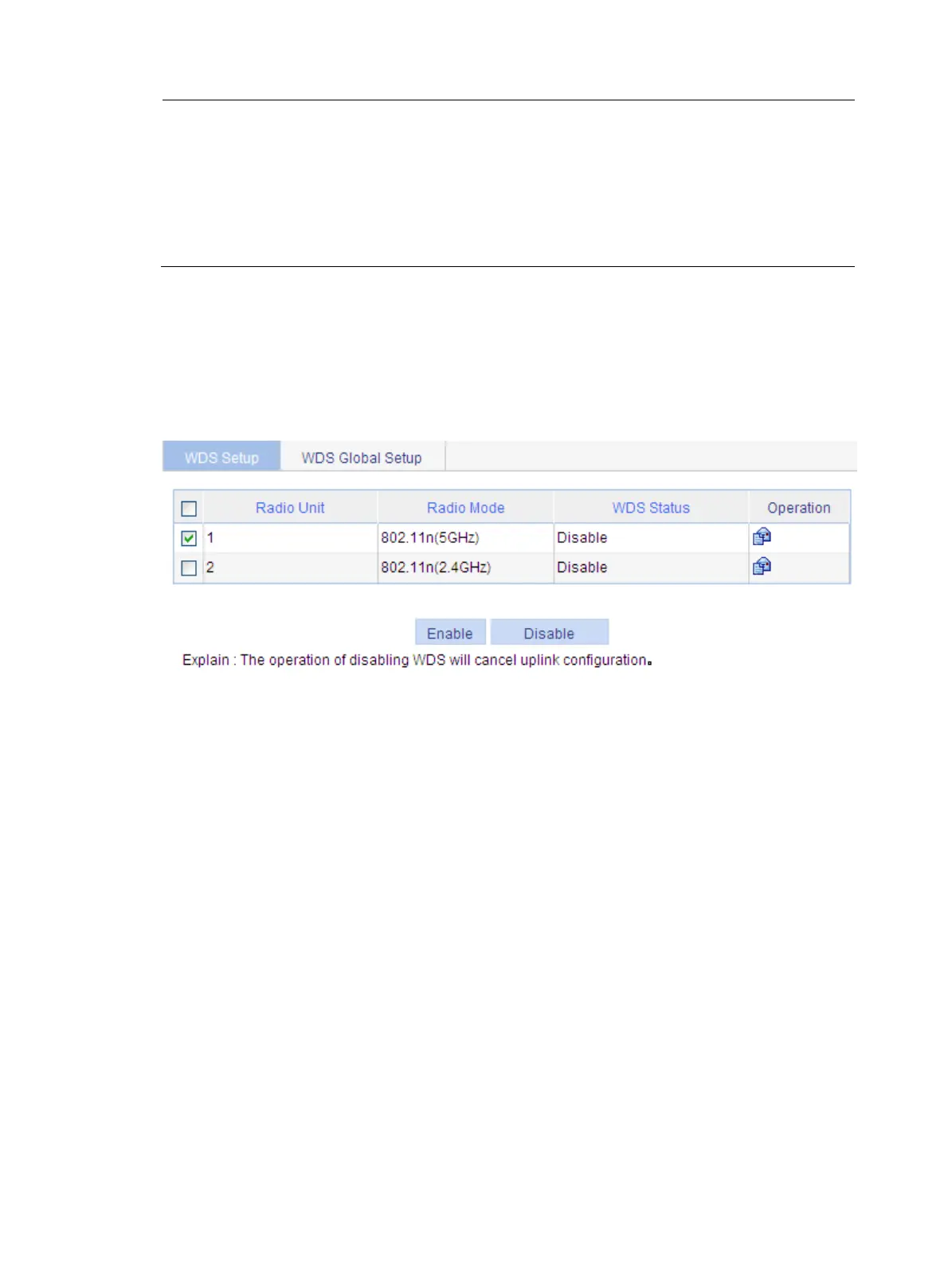

Figure 287 Enable WDS service
3. Select the radio for which WDS is to be enabled.
4. Click Enable.
Configuring the repeater service
To configure the repeater service, you must configure WDS and wireless access service on the AP, and
configure the radio to use a fixed channel.
• For how to configuring wireless access service for the repeater, see "Configuring access service."
• F
or how to configure WDS for the repeater, see "Configuring WDS service."
A
fter completing the above configurations, select Summary > Radio from the navigation tree to enter the
page shown in Figure 288.
On the page, you can see that the 802.11n(2.4GHz) radio of the repeater
provides both access and WDS services.
