H3C WA Series User Manual

104
Static ARP configuration example
Network requirements
To enhance communication security between the AP and the router, configure static ARP entries on the
AP.

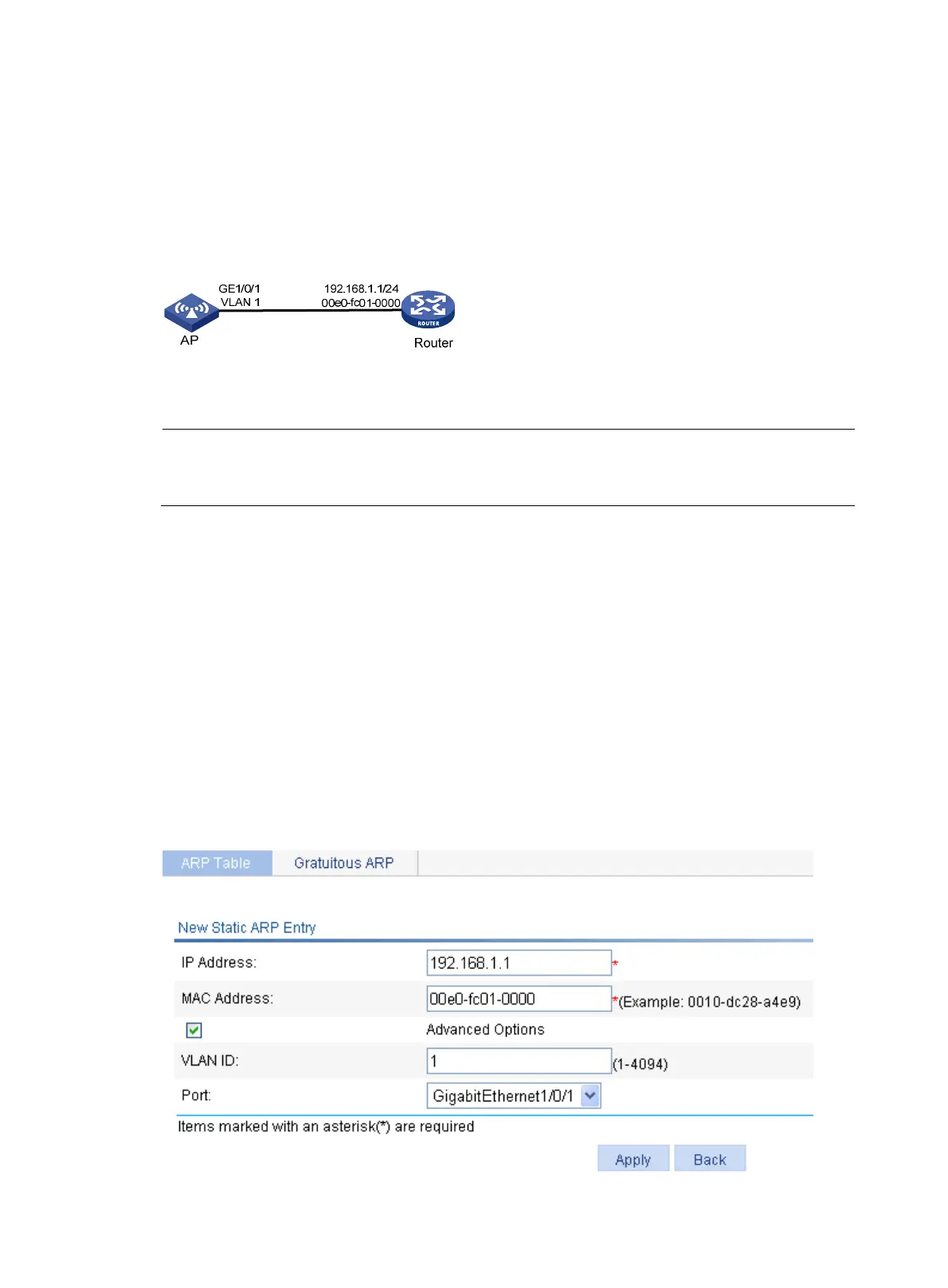

Figure 104 Network diagram
Configuration procedure
NOTE:
Before performing the following configuration, configure interface VLAN-interface 1 and log in to the web
configuration page of the AP through VLAN-interface 1.
1. Create a static ARP entry:
a. Select Network > ARP Management from the navigation tree to enter the default ARP Table
page.
b. Click Add.
c. To create a static ARP entry:
 Enter 192.168.1.1 for IP Address.
 Enter 00e0-fc01-0000 for MAC Address.
 Select the Advanced Options box.
 Enter 1 for VLAN ID.
 Select GigabitEthernet1/0/1 from the Port list.
d. Click Apply.
Figure 105 Create a static ARP entry
