Interface
Select the outgoing interface.
You can select any available Layer 3 interface, for example, a virtual
interface, of the device. If you select NULL 0, the destination IPv6
address is unreachable.
IPv4 static route configuration example
Network requirements
The IP addresses of devices are shown in Figure 121. IPv4 static routes must be configured on Switch A,
Switch B and AP for Host A and Host B to communicate with each other.

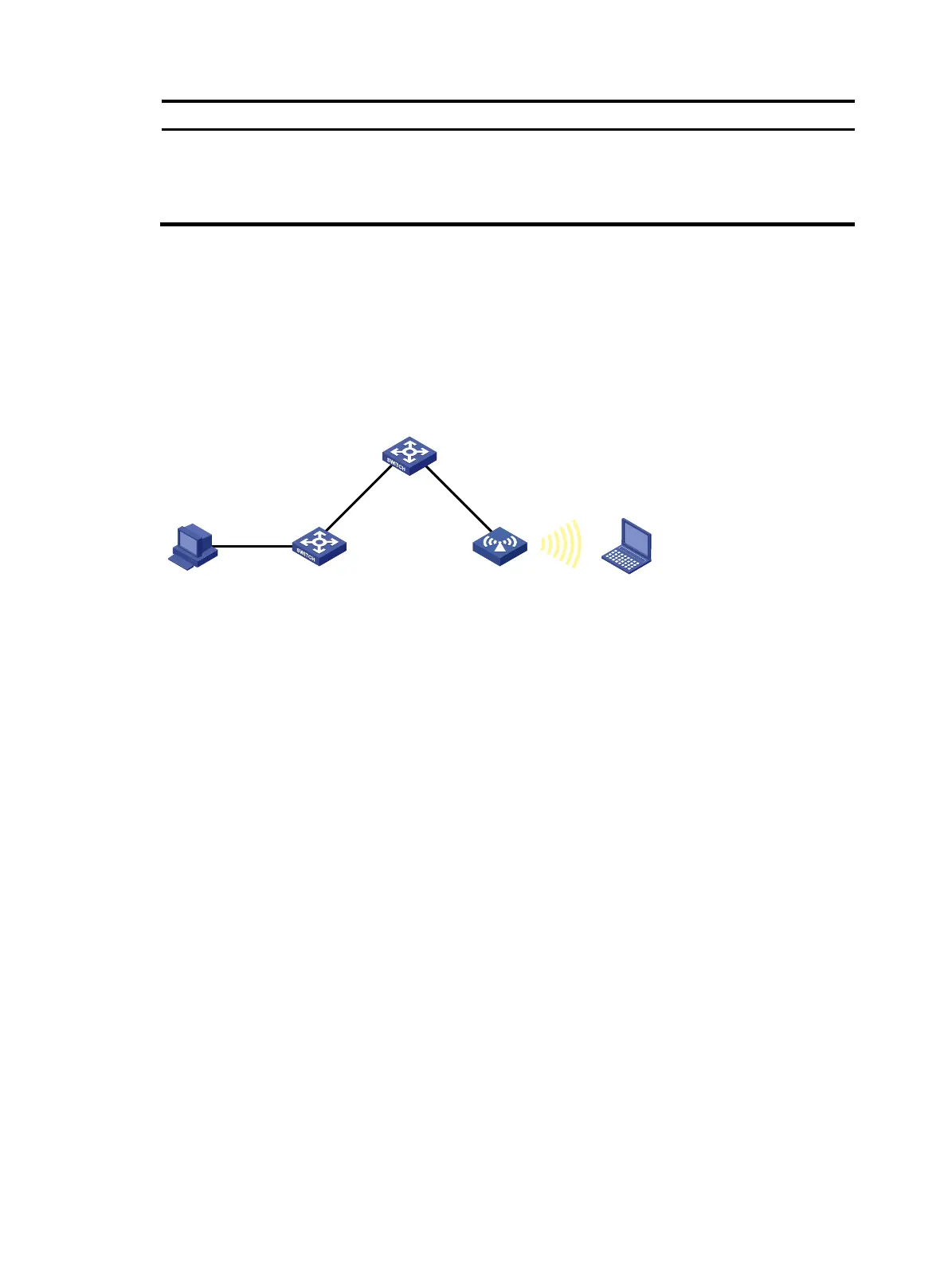

Figure 121 Network diagram
Configuration outlines
1. On Switch A, configure a default route with Switch B as the next hop.
2. On Switch B, configure one static route with Switch A as the next hop and the other with AP as the
next hop.
3. On AP, configure a default route with Switch B as the next hop.
Configuration procedure
1. Specify gateway 1.1.2.3 for Host A and gateway 1.1.3.3 for Host B.
2. Configure a default route with the next hop address 1.1.4.2 on Switch A.
3. Configure a static route with destination address 1.1.2.0/24 and next hop address 1.1.4.1 on
Switch B.
4. Configure a default route on AP:
a. Select Network > IPv4 Routing from the navigation tree
b. Click the Create tab to enter the IPv4 static route configuration page, as shown in Figure 122.
c. Enter destination IP address
0.0.0.0, mask 0, and next hop 1.1.3.3.
d. Click Apply.
Vlan-int500
1.1.4.2/30
Vlan-int1
1.1.3.3/24
Vlan-int500
1.1.4.1/30
Vlan-int1
1.1.3.1/24
Vlan-int300
1.1.2.3/24
Host A
1.1.2.2/24
AP
Switch B
Switch A
Host B
1.1.3.2/24
Vlan-int1
WLAN-BSS1
1.1.3.1/24
