H3C WA Series User Manual

295
3. Bind an AP radio to a wireless service
a. Select Wireless Service > Access Service from the navigation tree.
b. Click the Bind link at the right side of the wireless service service1 to enter the page as shown
in Figure 297.
c. Selec
t the box with radio mode 802.11n(2.4GHz).
d. Click Bind.

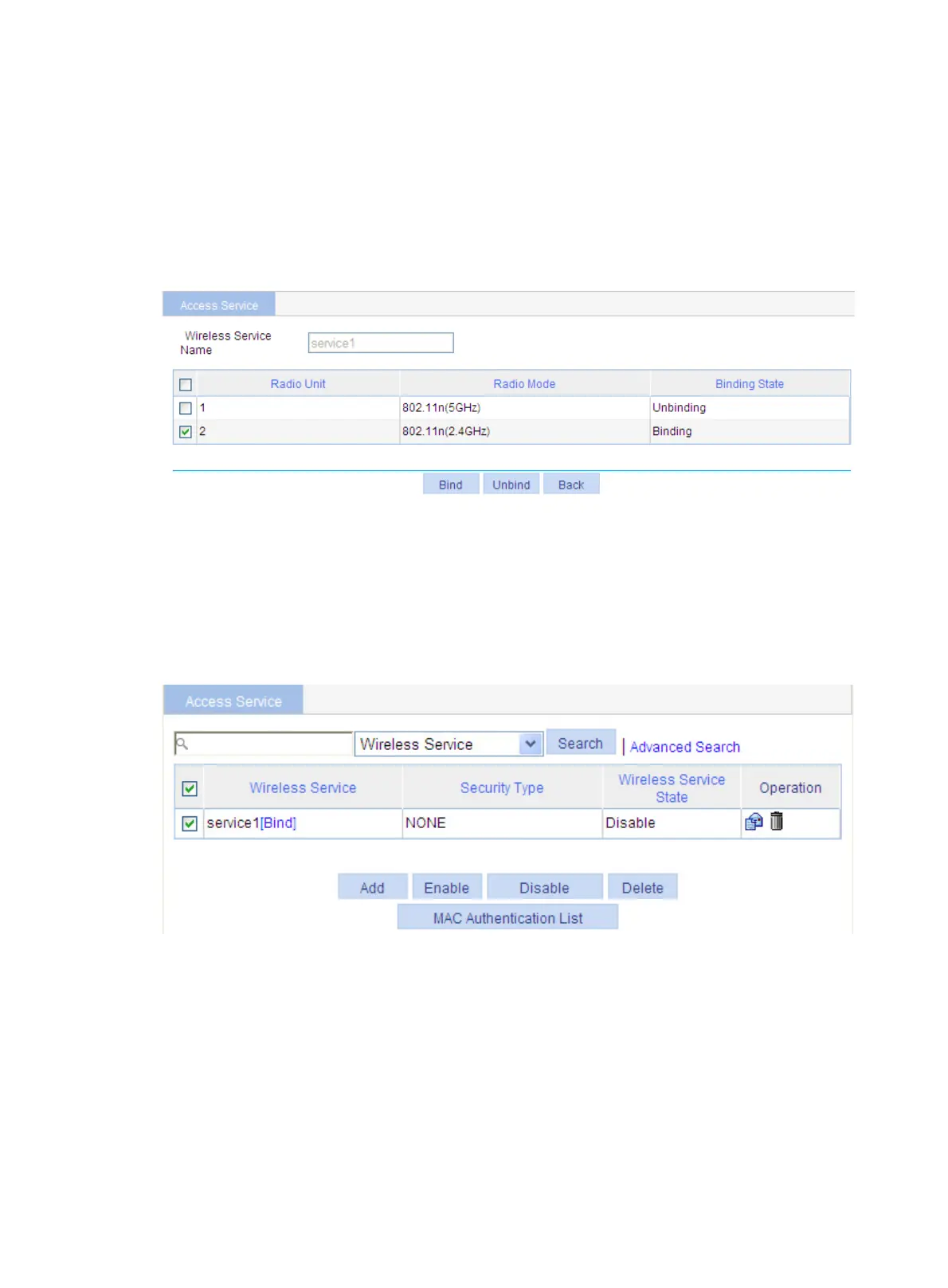

Figure 296 Bind an AP radio
4. Enable the wireless service
a. Select Wireless Service > Access Service from the navigation tree to enter the page for enabling
wireless service.
b. Select the service1 box.
c. Click Enable.
Figure 297 Enable the wireless service
5. Optional: Enable 802.11n radio (By default, 802.11n(2.4GHz) radio is enabled.)
Select Radio > Radio from the navigation tree to enter the Radio page, as shown in Figure 298.
Make sure 80
2.11n(2.4GHz) radio is enabled.
