12.1 Device dimensions
TT4030
SXM
K
SY
IP
IT
IC
1
6
2
3
4
5

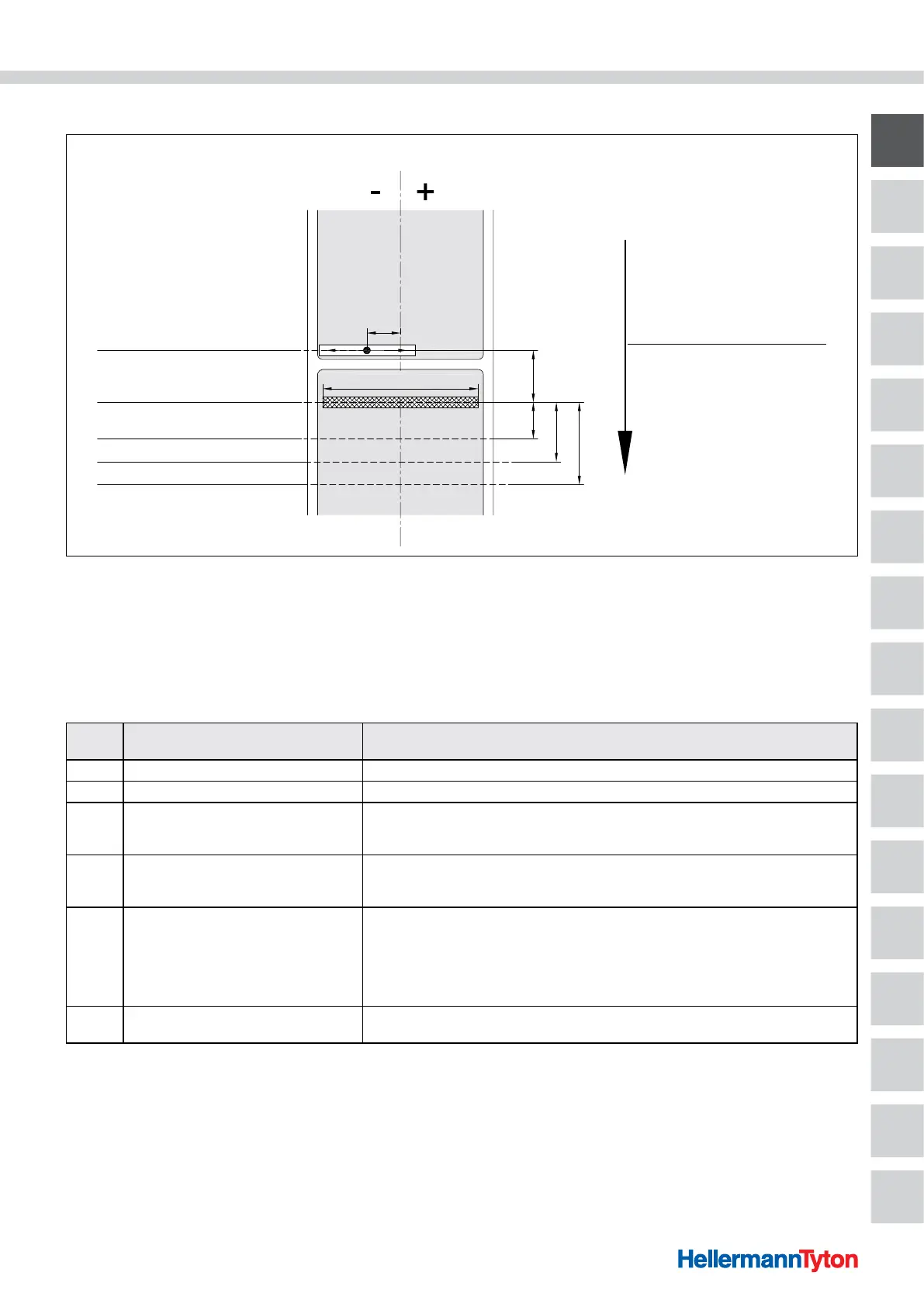

Device dimensions.
1 Backlight sensor and reflective sensor
2 Printhead
3 Dispensing plate (only included with the dispenser version)
4 Tear-off plate
5 Cutting plate
6 Feed direction
Dimen-
sion
Designation Dimension in mm
IP Distance print line - dispensing plate 3.5
IT Distance print line - tear-off plate 13.5
IC
Distance print line - cutting plate blade
with cutter
with perforation cutter
20.5
21.2
K
Print width
300 dpi
600 dpi
105.6
105.6
SXM
Distance backlight and reflection sensor -
centre of the paper feed
i.e. permissible distance from the reflection
mark
and perforations to the centre of the
material
-55 - 0
SY
Distance backlight and reflection sensor -
print line
45.0
