Layout and function
6
4 Layout and function
4.1 Layout
10
1
2
3
4
5
6
9
7
8

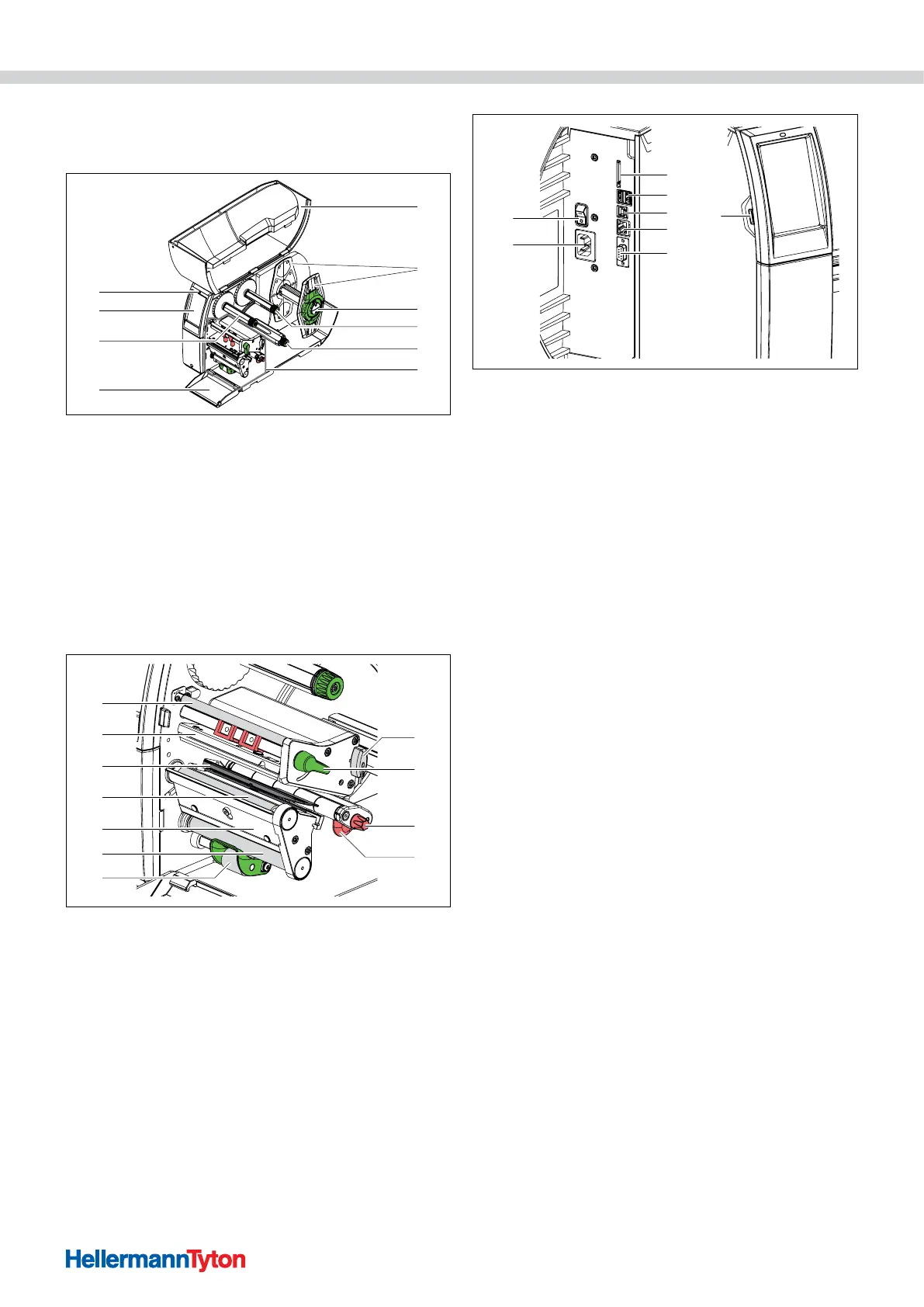

Device overview.
1 Cover
2 Margin stops
3 Roll retainer
4 Colour ribbon supply hub
5 Internal winder (only included with the dispenser version)
6 Print mechanism
7 Cover
8 Colour ribbon winder
9 Touchscreen display
10 "Device on" LED
21
12
13
14
11
20
19
18
17
16
15
Print mechanism.
11 Allen key
12 Printhead locking lever
13 Adjusting knob for the guide
14 Guide
15 Pressing system (only included with the dispenser version)
16 Guide roll (only included with the dispenser version)
17 Tear-off plate
18 Print roller
19 Light barrier
20 Printhead retainer with printhead
21 Guide roll for the colour ribbon
22
24
25
26
27
28
29
23
Device from the rear.
22 Power switch
23 Power connection jack
24 Slot for the SD card
25 2x USB master interfaces for key pad, scanner, USB memory device, bluetooth
adapter or service key
26 USB full-speed slave port
27 Ethernet 10/100 Base-T
28 RS-232 port
29 USB master interface for key pad, scanner, USB memory device, bluetooth
adapter or service key
