MAINTENANCE AND ADJUSTMENT OF THE UTV
- 87 -
5. Adjust the valve clearance of cylinder 1, and
cylinder 2 the same way

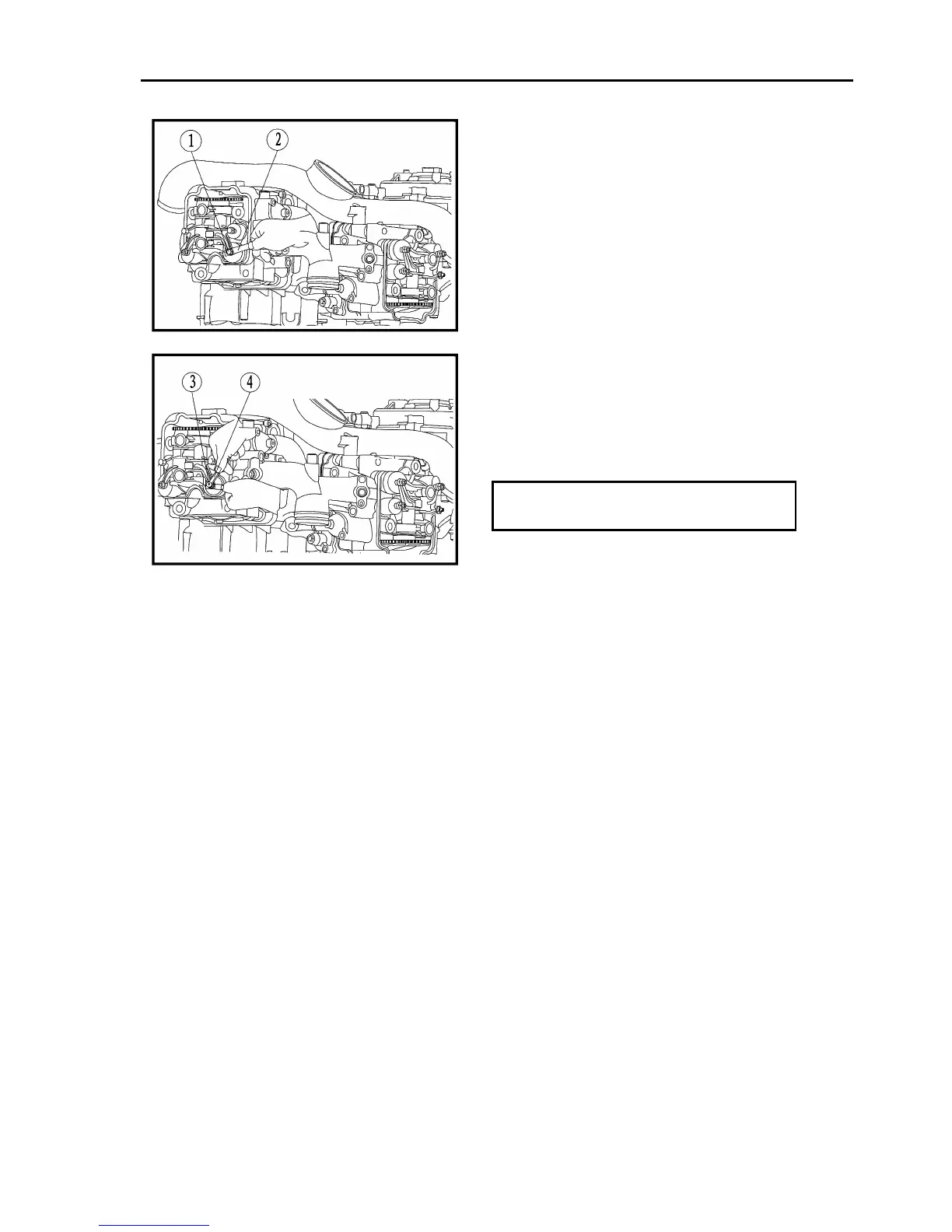

valve clearance
① Lock nut
② Valve thickness gauge（gap Regulation）
③ Regulator
④ Adjust tools
· Loosen the locknut .①
· Insert a thickness gauge between the③ adjuste
end and the valve end.
·Turn the adjuster clockwise or counterclockwise ③
with the tappet adjusting tool until the prope
④
clearance is obtained.
· in order to avoid adjuster rotating along, fix the lock
nut after finishing
· Measuring clear
· Measure the clearance of valve with gap gauge.
· If the gap beyond the standard value, repeat the
above steps until the correct gap.
6. Install all removed parts
According to remove the reverse order fo
installation
① left front cover, crankcase
② ignition sensor
③ Bolt M6×10
④ air intake valve cover
⑤ Lower the cargo bed.
⑥ console
⑦ passenger seat
⑧ driver seat
Refer to “SEATS” in chapter 5.
Fixed nut
14 Nm(1.4 m·kgf, 10 ft·lbs)
