ENGINE
- 129 -
ENGINE REMOVAL
No. Part Name Qty Remarks

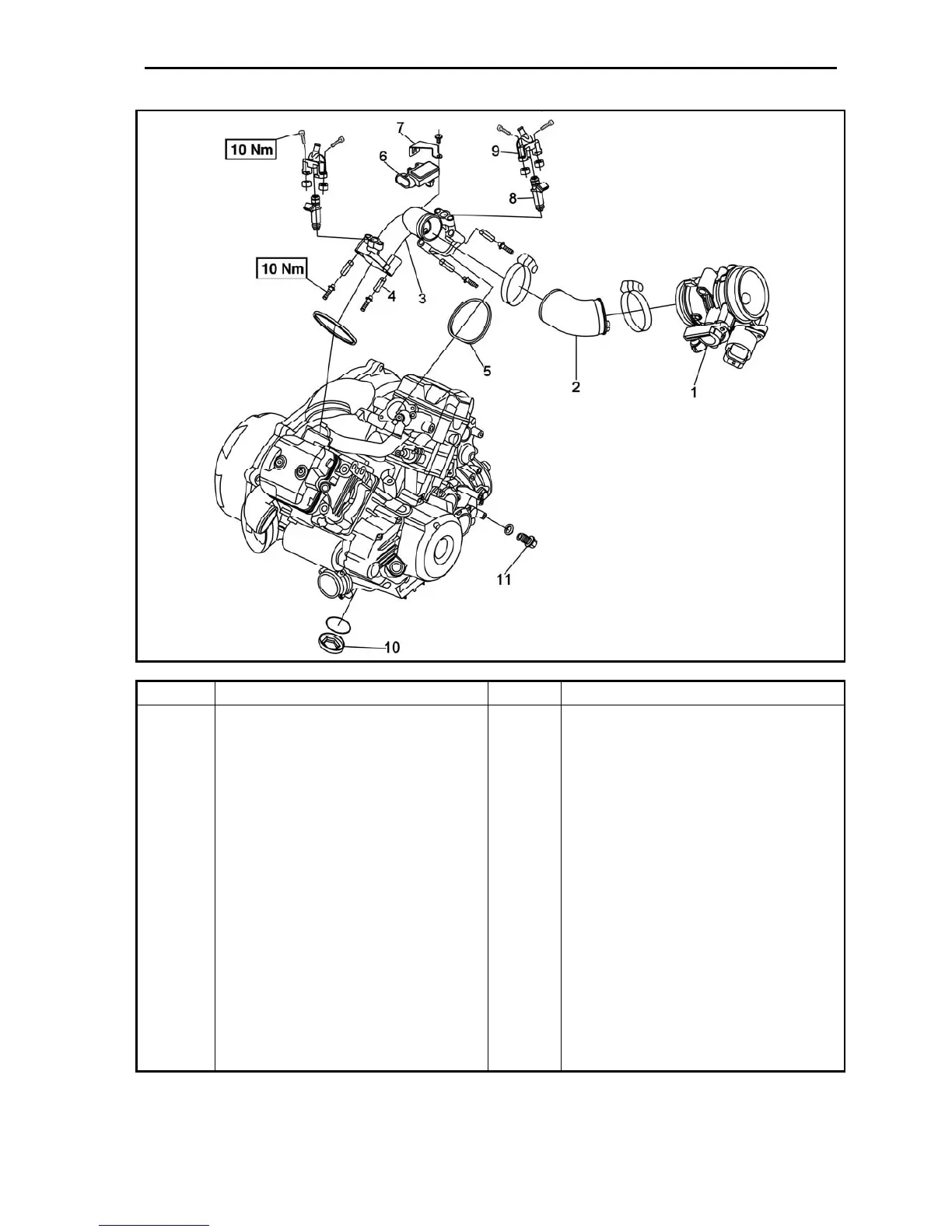

Removing throttle and intake
manifold.
Remove the parts in the order listed.
1 Dampers 1
2 Dampers joint (intake manifold) 1
3 Intake manifold 1
4 Bushing φ8.5×φ11.2×34 4
5 Intake manifold washer 2
6 Pressure sensor 1
7 Pressure plate TMAP 1
8 Fuel Injector 2
9 Fuel Injector seat 2
10 Drain blind nut 1
11 Drain plug 1
For installation, reverse the removal
procedure.
