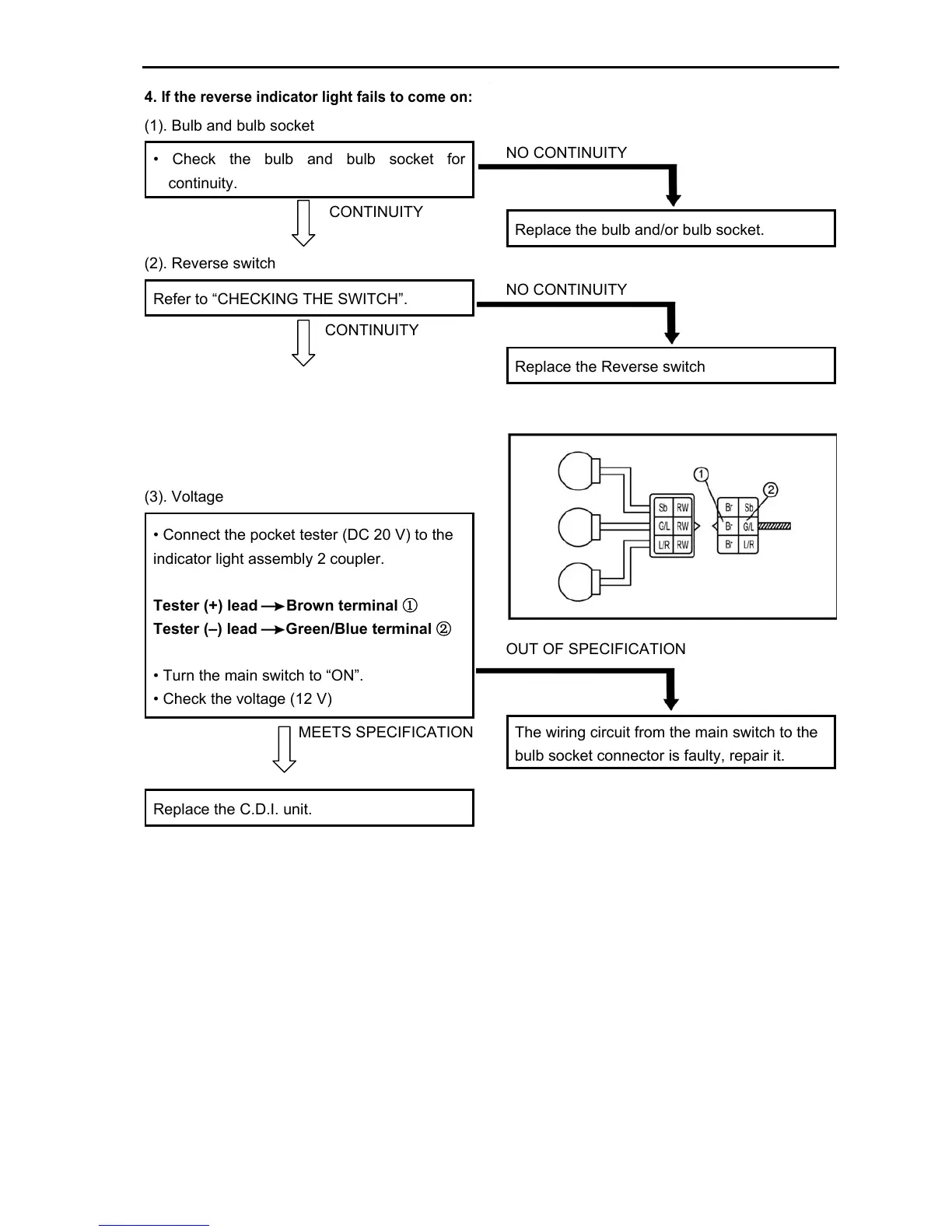

4. If the reverse indicator light fails to come on:
(1). Bulb and bulb socket
• Check the bulb and bulb socket for
continuity.
CONTINUITY
(2). Reverse switch
Refer to “CHECKING THE SWITCH”.
CONTINUITY
(3). Voltage
• Connect the pocket tester (DC 20 V) to the
indicator light assembly 2 coupler.
Tester (+) lead
Brown terminal ①
Tester (–) lead
Green/Blue terminal ②
• Turn the main switch to “ON”.
• Check the voltage (12 V)
MEETS SPECIFICATION
Replace the C.D.I. unit.
NO CONTINUITY
Replace the bulb and/or bulb socket.
NO CONTINUITY
Replace the Reverse switch
OUT OF SPECIFICATION
The wiring circuit from the main switch to the
bulb socket connector is faulty, repair it.
