Hisun HS800UTV - Assembling the Starter Motor

ELECTRICAL COMPONENTS
- 297 -

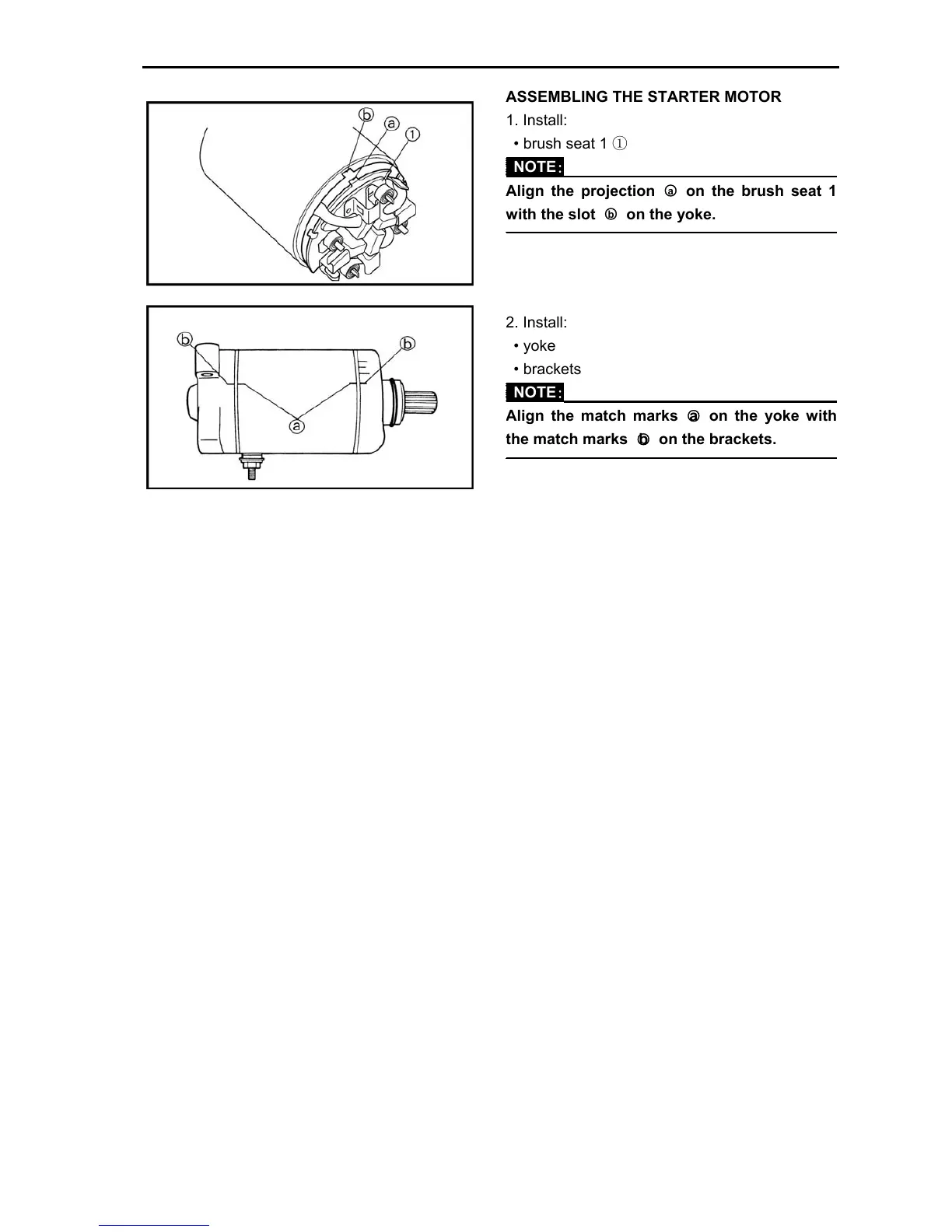

ASSEMBLING THE STARTER MOTOR
1. Install:
• brush seat 1 ①
NOTE:
Align the projection ○
a
on the brush seat 1
with the slot ○
b
on the yoke.
2. Install:
• yoke
• brackets
NOTE:
Align the match marks ○a on the yoke with
the match marks ○b on the brackets.
