INSTALLING THE REAR ARMS AND REAR
SHOCK ABSORBER
1. Install:
• rear arms
• rear shock absorber

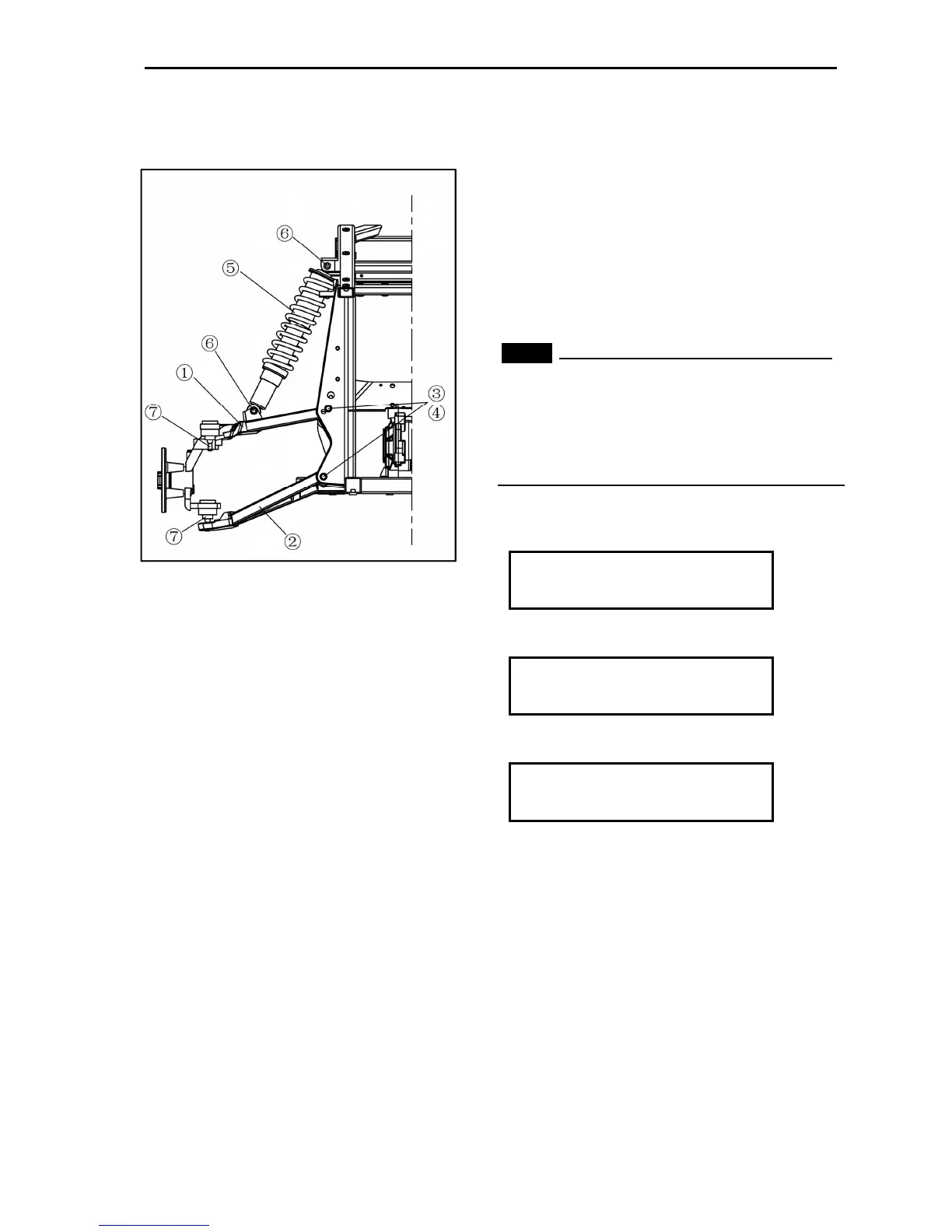

a. Install the rear upper arm ①and rear lower arm
②.
NOTE:
• Lubricate the bolts ③ with
lithium-soap-based grease.
• Be sure to position the bolts ③ so that the
bolt head faces inward.
• Temporarily tighten the nuts ④.
b. Install the rear shock absorber ⑤.
Nut ⑥
45 Nm (4.5 m · kg, 32 ft · lb)
c. Install the rear knuckle.
Nut ⑦
45 Nm (4.5 m · kg, 32 ft · lb)
d. Tighten the nuts ④.
Nut ④
45 Nm (4.5 m · kg,32 ft · lb)
