Hisun HS800UTV - Water Pump

To Next Page

To Previous Page

CHASSIS

- 266-

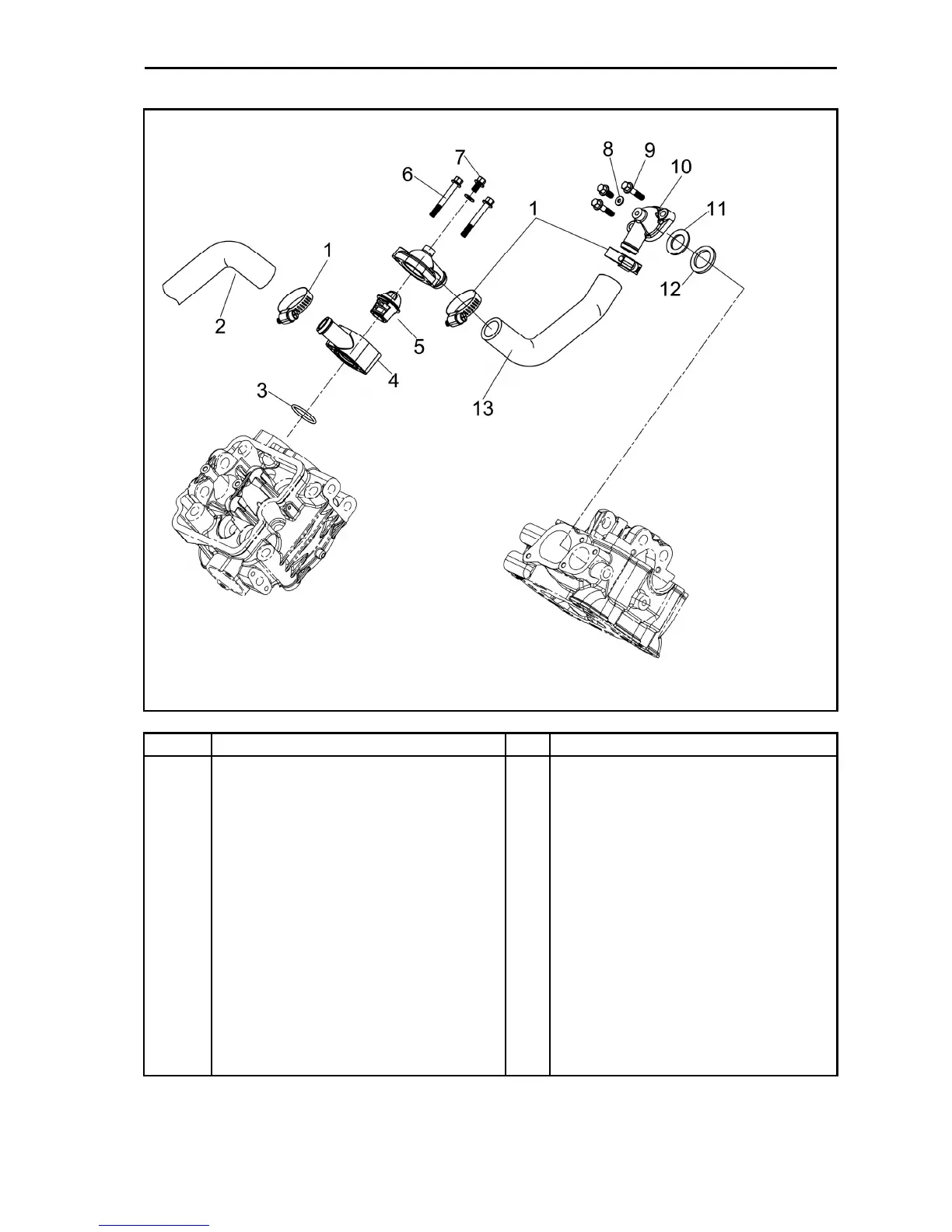

WATER PUMP

No. Part Name Qty Remarks

Removing the water pump

1 Clip 3

2 Water pipe 1

3 O-ring Φ27×2.5 1

4 Water outlet connector, cylinder 1

5 Save temperature 1

6 Bolt M6×50 2

7 Bolt M6×12 2

8 Washer Φ6×Φ10×1 2

9 Bolt M6×25 2

10 Thermostat cover 1

11 Washer Φ20.5×Φ30×1 1

12 Gasket 1

13 Water pipe 1
