GENERAL INFORMATION

-3-

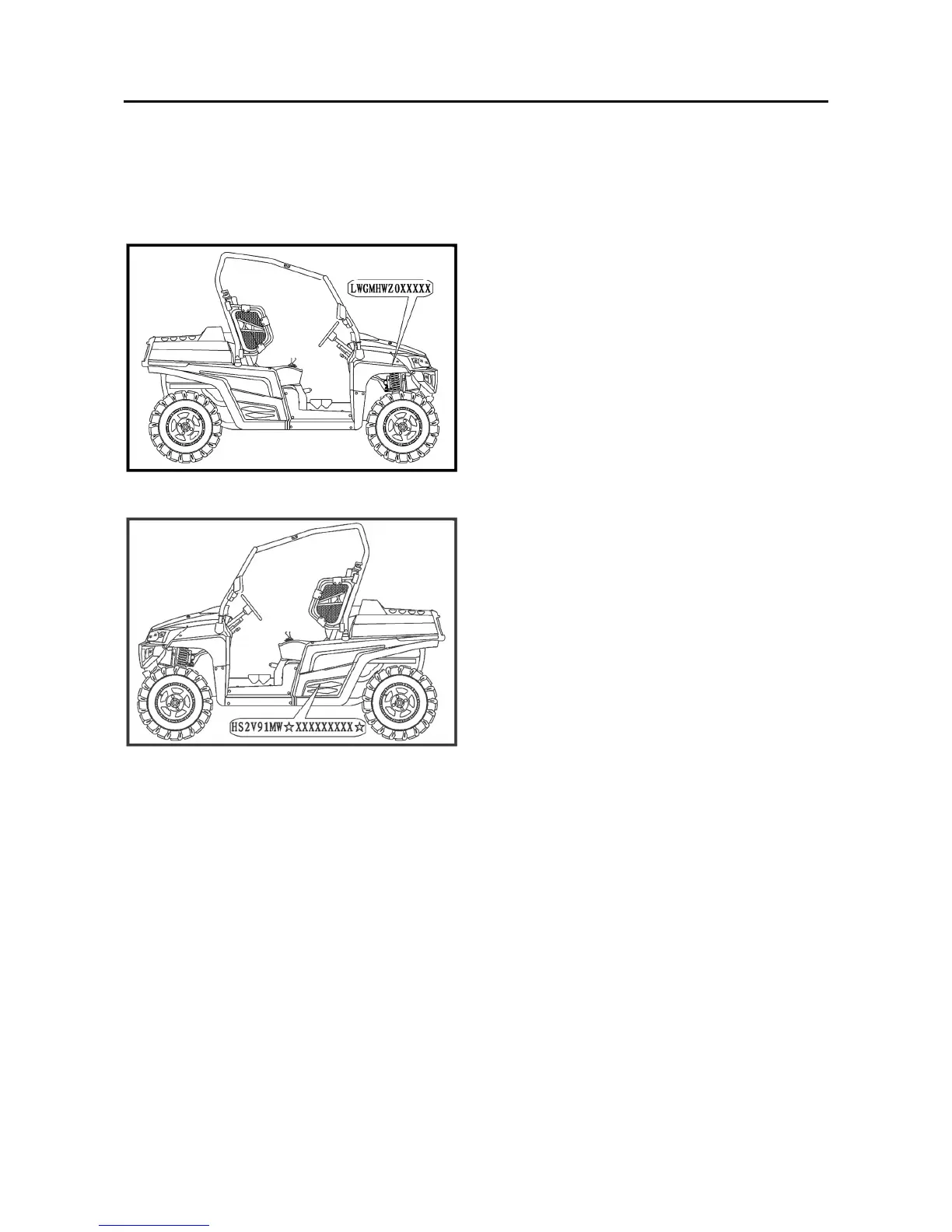

IDENTIFICATION CODE

Frame No.

Frame No. is carved on the right side of front

main frame

Engine No.

Engine NO. Is carved on the right side of the

engine, Figure.
