Hisun HS800UTV - If the Four-Wheel Drive Indicator Light Fails to Come on

ELECTRICAL COMPONENTS
- 315 -

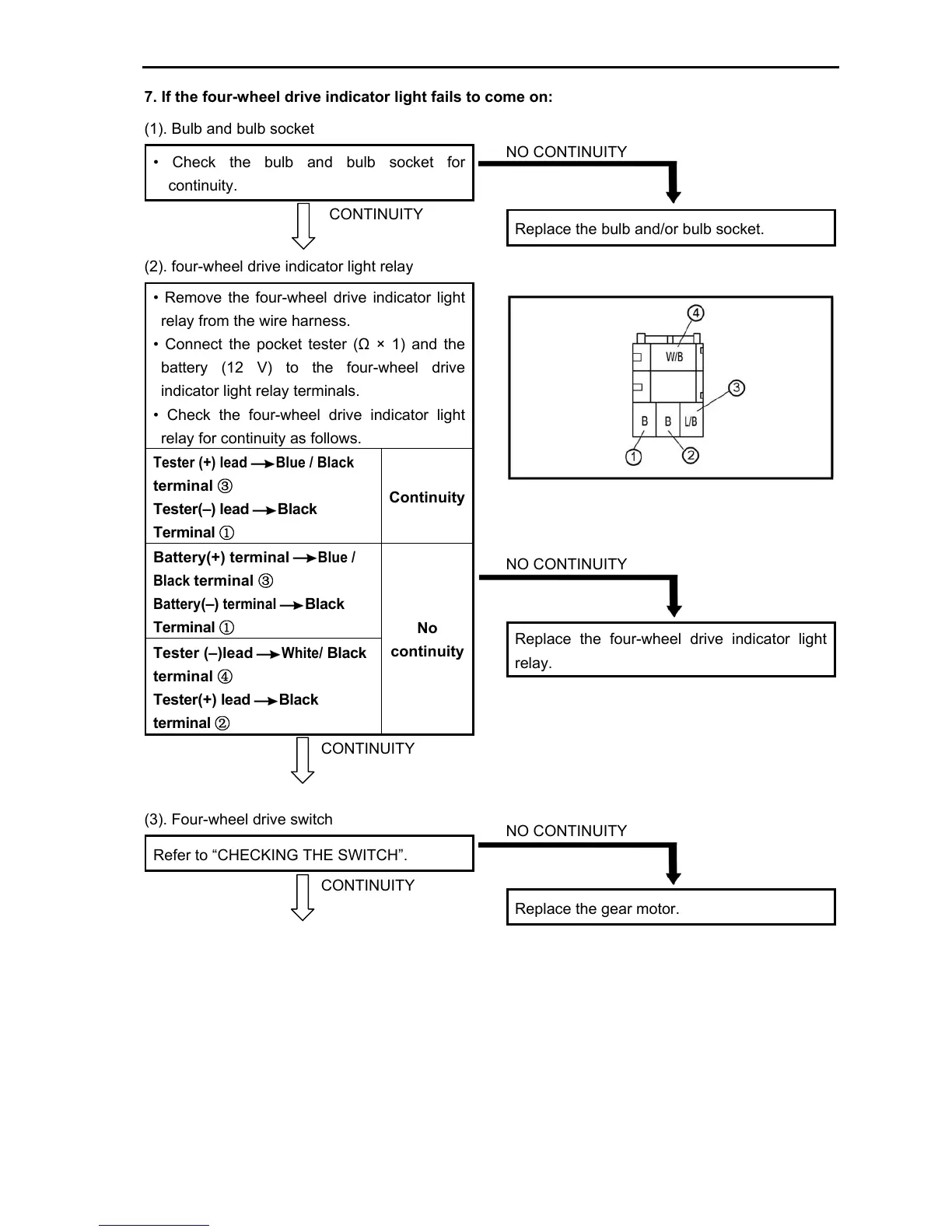

7. If the four-wheel drive indicator light fails to come on:
(1). Bulb and bulb socket
• Check the bulb and bulb socket for
continuity.
CONTINUITY
(2). four-wheel drive indicator light relay
• Remove the four-wheel drive indicator light
relay from the wire harness.
• Connect the pocket tester (Ω × 1) and the
battery (12 V) to the four-wheel drive
indicator light relay terminals.
• Check the four-wheel drive indicator light
relay for continuity as follows.
Tester (+) lead Blue / Black
terminal ③
Tester(–) lead Black
Terminal ①
Continuity
Battery(+) terminal Blue /
Black
terminal ③
Battery (–) terminal Black
Terminal ①
Tester (–)lead White/ Black
terminal ④
Tester(+) lead
Black
terminal ②
No
continuity
CONTINUITY
(3). Four-wheel drive switch
Refer to “CHECKING THE SWITCH”.
CONTINUITY
NO CONTINUITY
Replace the bulb and/or bulb socket.
NO CONTINUITY
Replace the four-wheel drive indicator light
relay.
NO CONTINUITY
Replace the gear motor.
