MAINTENCE AND ADJUSTMENT OF THE UTV
- 108 -

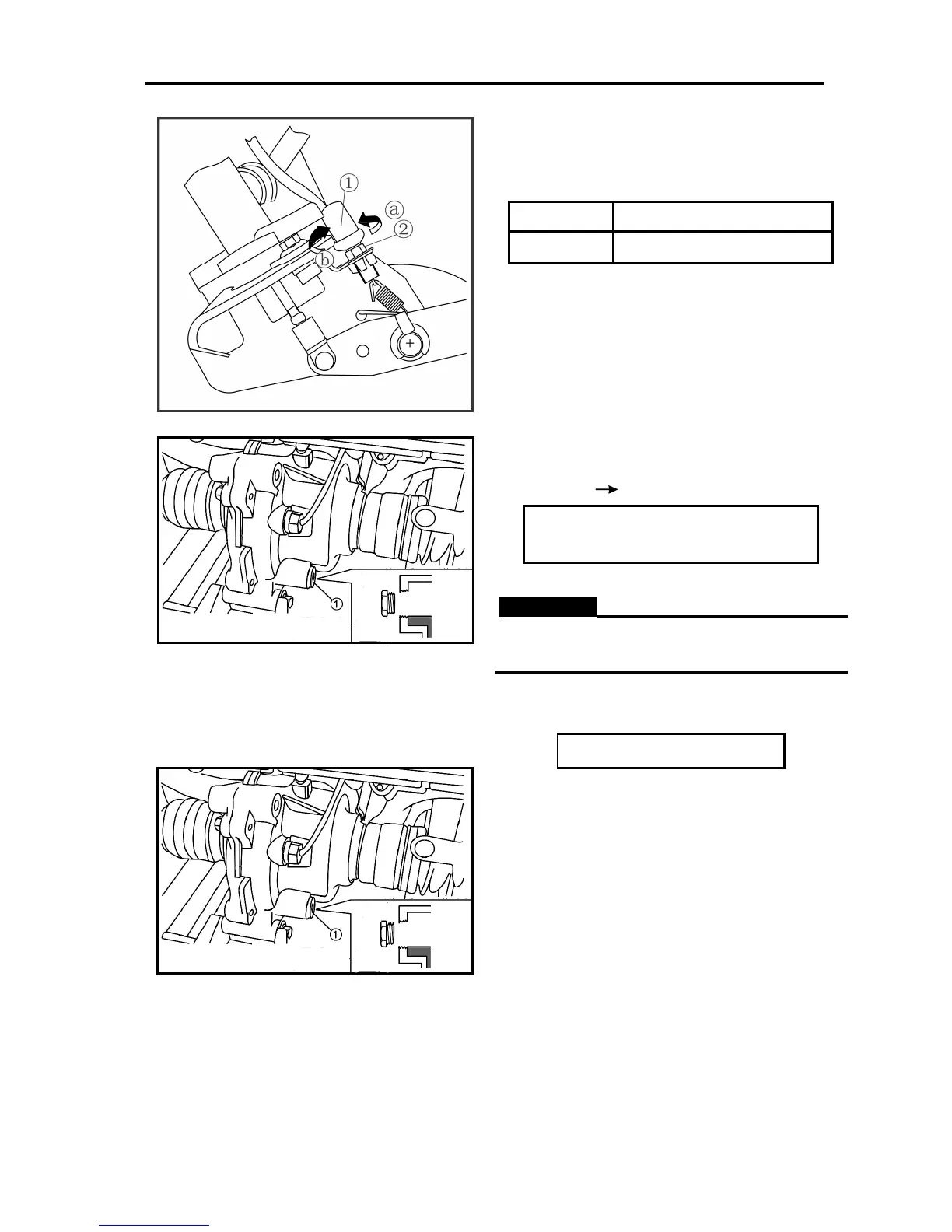

a. Hold the main body of the brake light① switch so
that it does not rotate and turn the adjusting nut ②
in direction
○
a or
○
b until the brake light
comes on at the proper time.
Direction
○
a Brake light comes on sooner.
Direction
○
b Brake light comes on later.
CHECKING THE FINAL GEAR OIL LEVEL
1. Place the vehicle on a level surface.
2. Remove:
·oil filler plug ①
3. Check:
·oil level
Oil level should be up to the brim of the hole.
Oil level low
Add oil to the proper level.
Recommended oil
SAE 80 API GL-4Hypoid gear oil
WARNING
:
Take care not allow foreign material to enter the
final gear case.
4. Install:
·oil filler plug
23 Nm (2.3 m · kg, 17 ft · lb)
CHANGING THE FINAL GEAR OIL
1. Place the vehicle on a level surface.
2. Place a container under the final gear case to
collect the used oil.
3. Remove:
·oil filler plug ①
·Fill:
final gear case
.
