Hisun HS800UTV - Starter Motor

ELECTRICAL COMPONENTS
- 295 -

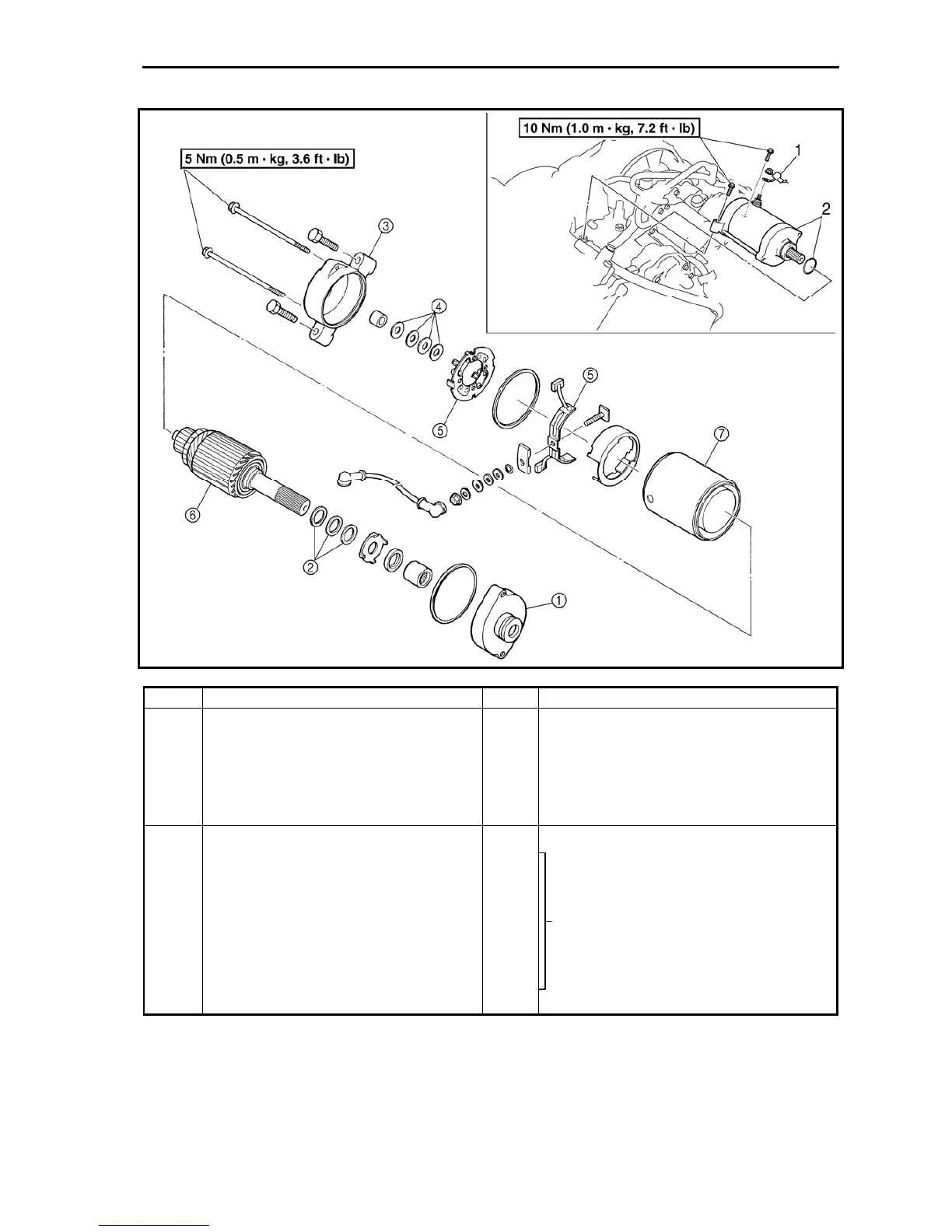

STARTER MOTOR
No. Part Name Qty Remarks
1
2
Removing the starter motor
Starter motor lead
Starter motor/O-ring
1
1/1
Remove the parts in the order listed.
For installation, reverse the removal
procedure.
①
②
③
④
⑤
⑥
⑦
Disassembling the starter motor
Bracket 1
Washer kit
Bracket 2
Shims
Brush seat 1/brush seat 2
Armature coil 1
Yoke
1
1
1
1/1
1
1
Remove the parts in the order listed.
Refer to “ASSEMBLING THE
STARTER MOTOR”
