CHASSIS
- 209-

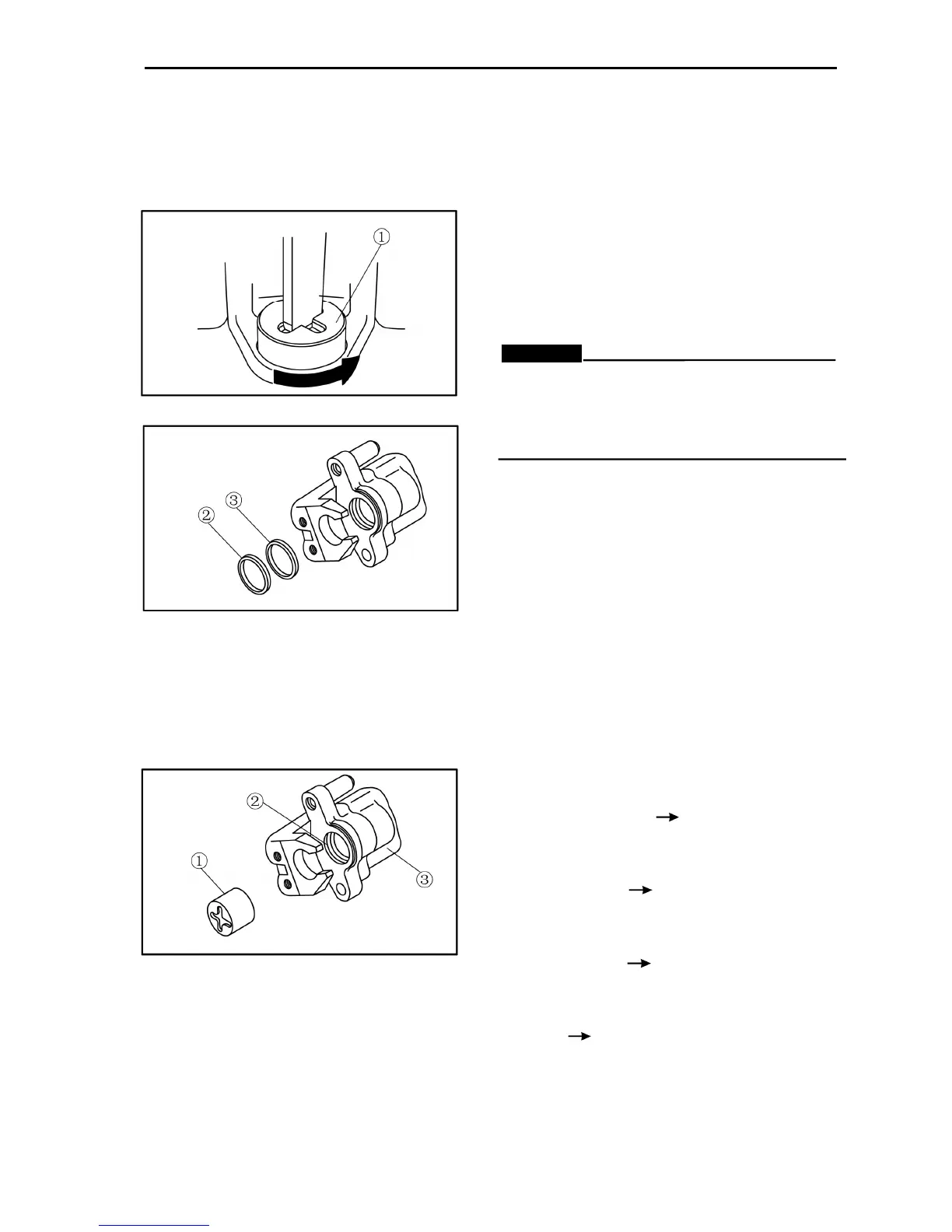

DISASSEMBLING THE REAR BRAKE
CALIPER
1. Remove:
• brake caliper piston ①
• dust seal ②
• caliper piston seal ③
a. Turn the brake caliper piston counterclockwise
to remove it.
b. Remove the dust seal and caliper piston seal.
WARNING:
All internal brake components should be
cleaned in new brake fluid only. Do not use
solvents as they will cause seals to swell
and distort.
2.Check:
• brake caliper pistons ①
Scratches/rust/wear
Replace the brake
caliper assembly.
• brake caliper cylinders ②
Wear/scratches
Replace the brake caliper
assembly.
• brake caliper body ③
Cracks/damage Replace.
• brake fluid delivery passage (brake caliper
body)
Blockage
Blow out with compressed air.
