CHASSIS

- 239-

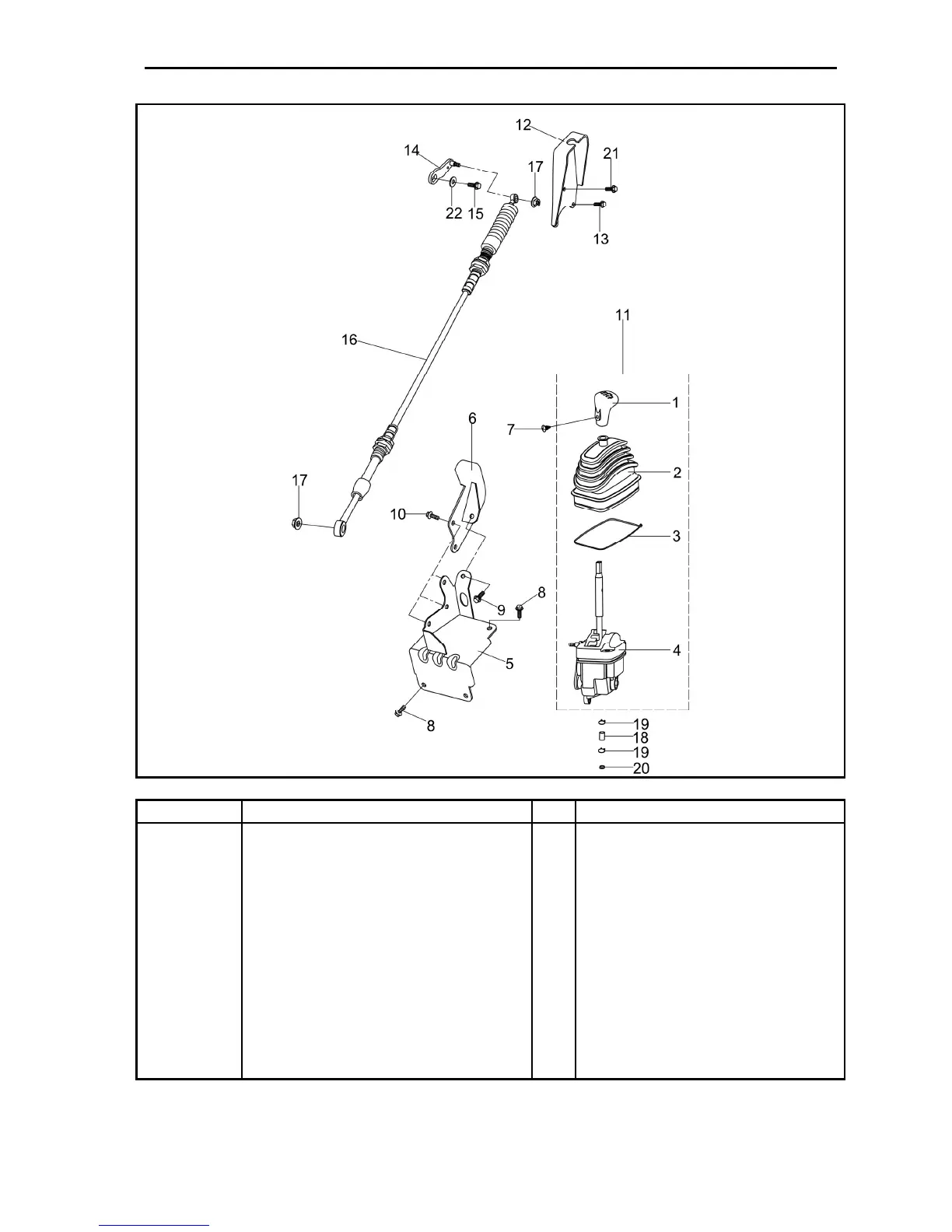

Reverse mechanism parts

No. Part Name Qty Remarks

Removing the shift shaft

1 Knob, shift lever 1

2 Gearshift, dust-proof rubber 1

3 Clip clamp 1

4 Gearshift assembly 1

5 Gearshift mounting seat 1

6 Rear bracket, gearshift cable 1

7 Plastic screw 1

8 Bolt M8×16 1

9 Bolt M8×20 1

10 Bolt M8×12 3
