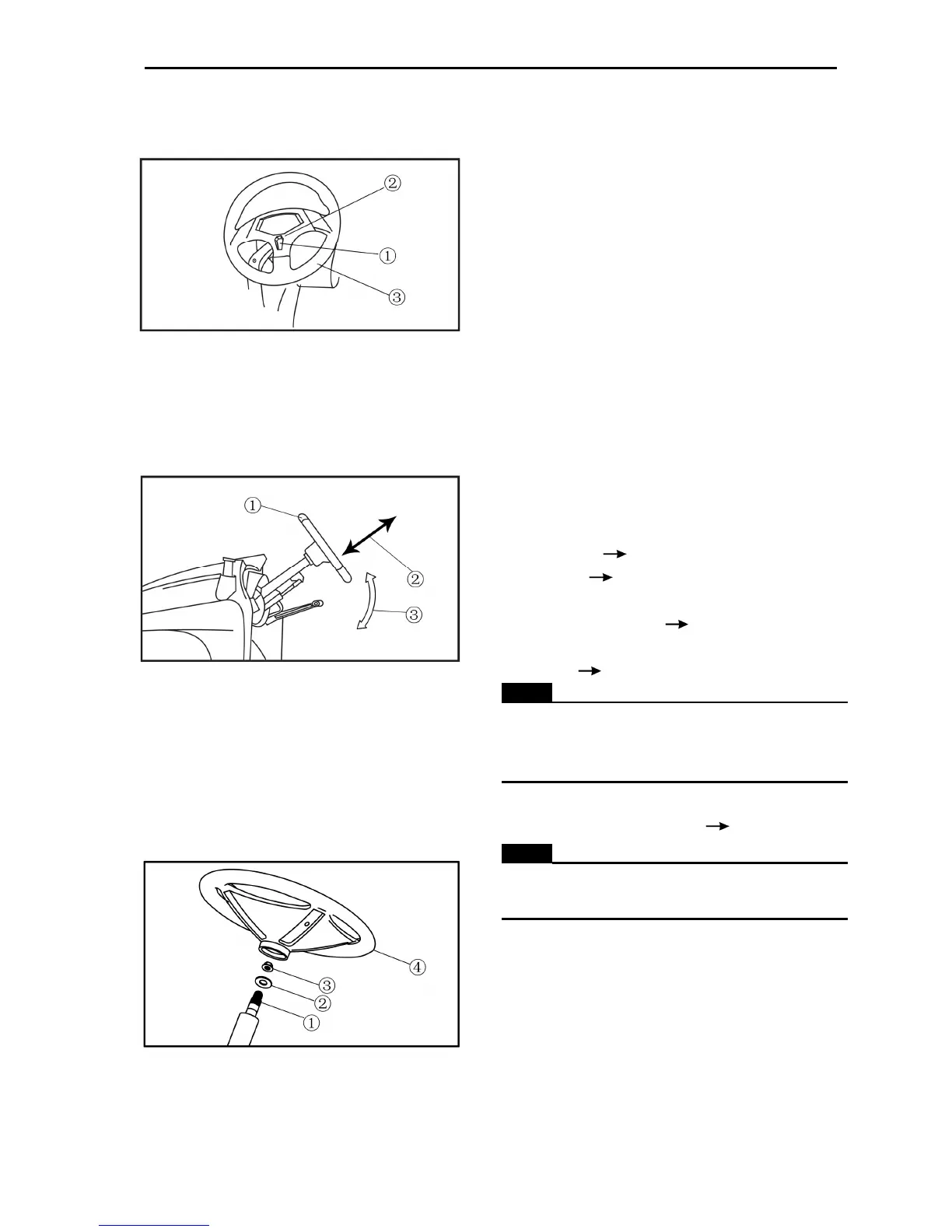

THE STRUCTURE OF STEERING WHEEL PART
DIASSEMBLING THE PARTS OF THE
STEERING WHEEL
Remove:
• plastic center lid ①
• flange nut, washer ②
• steering wheel ③
a. Takes down the plastic center lid ①
b. Takes down the steering wheel flange nut, the
washer Attached figure ②
c. Use the special tools pull out the steering
wheel ③
CHECKING THE PARTS OF THE STEERING
WHEEL
Check:
• steering wheel ①
• rocky ledge ②
• reverse turning clearance ③
crack/ break
Replace.
loose/play
Adjust.
the steering wheel to rotate whether nimble, do
not have stagnation.
Adjust the torque of the
steering wheel whether obviously
increase
Adjust.
NOTE:
The steering force cutting which exerts to
transfers in steering wheel outflow boundary is
smaller than 245N.
The reverse running clearance whether does
surpass the limited stipulation Adjust
NOTE:
The reverse running clearance is less than
30mm.
The grip part which is covered by the foam whether
has damaged, if it is, must replace a new steering
wheel.
• Steering shaft ①
• Washer ②
