Hisun HS800UTV - Checking the Ignition Timing

MAINTENANCE AND ADJUSTMENT OF THE UTV
- 89 -

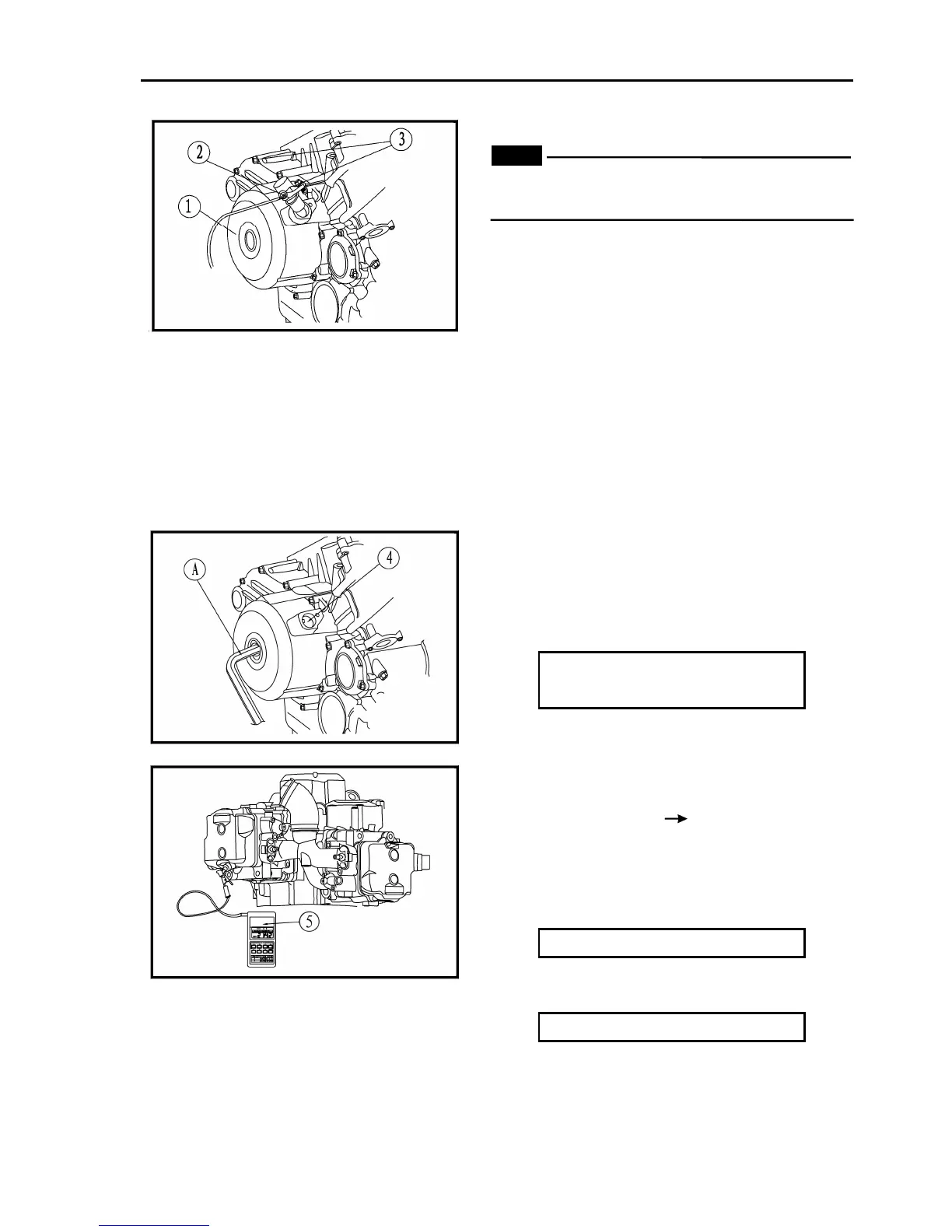

CHECKING THE IGNITION TIMING
NOTE:
before checking the ignition timing, adjust the
engine’s racing speed and throttle cable.
1. Remove:
·driver seat
·passenger seat
·console
Refer to “SEATS” in chapter 5.
2. Lift the cargo bed up.
3. Attach:
· Engine tachometer ⑤
(to the spark plug lead)
4. Remove:
Refer to remove manual starting mechanism
②、③、① name
5. Check:
· Engine tachometer
a. worm up the engine at specified speed
Engine speed
1,400 ~ 1,500 r/min
b. Remove Ignition signal sensor ②
c. Visually check the stationary pointer ③ to verify it
is within the required firing range④indicated on the
flywheel.
Incorrect firing range
Check the pulser coil
assembly.
d. Install the timing plug.
6. Install:
·Engine manual starting mechanism
7 Nm (0.7 m · kg, 5.1 ft · lb)
7. Install:
·manual starting mechanism cover
10 Nm (1.0 m · kg, 7.2 ft · lb)
8. Detach:
· timing light
9. Lower the cargo bed.
10. Install:
