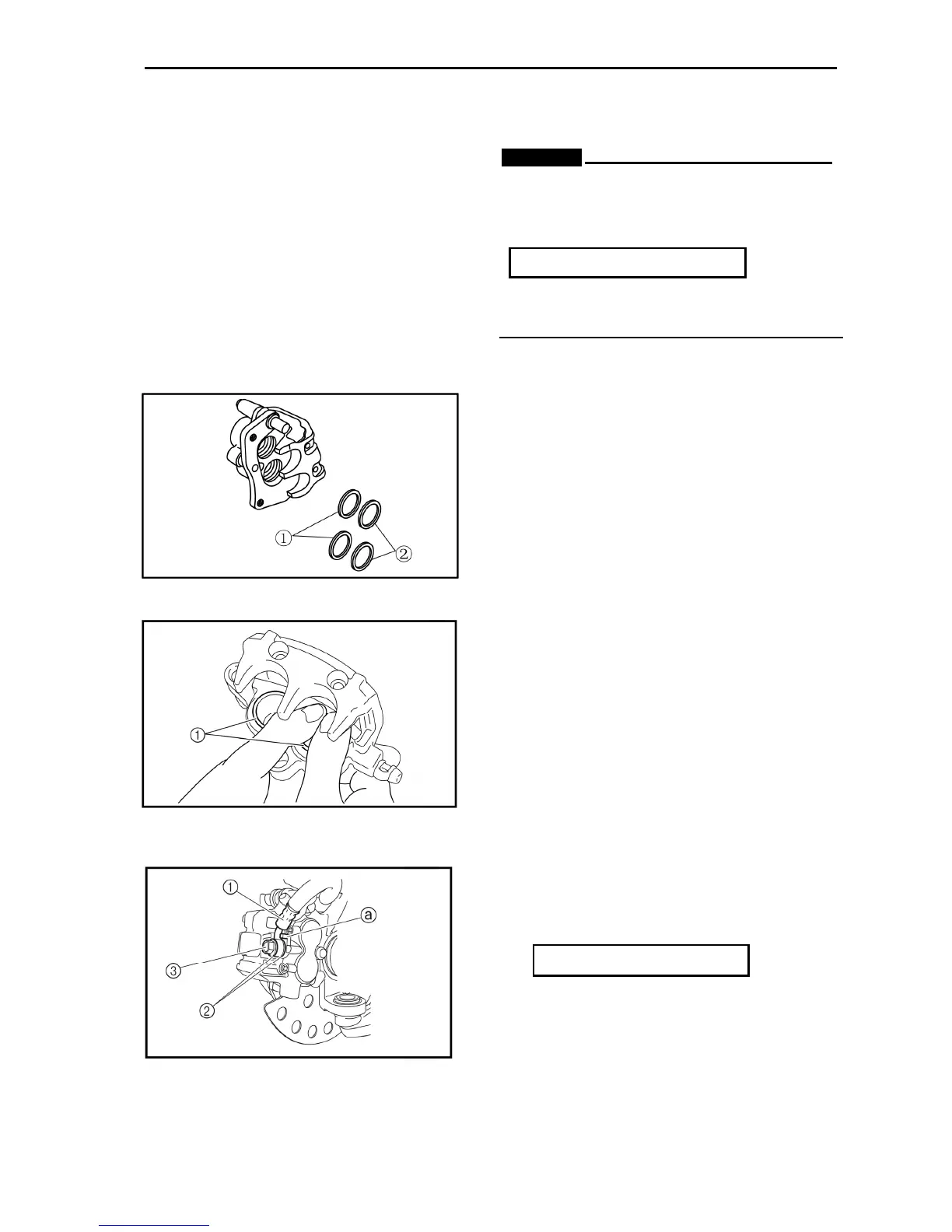

ASSEMBLING THE FRONT BRAKE CALIPERS
WARNING:
• All internal brake components should be
cleaned and lubricated with new brake
fluid only before installation.
Must use DOT4 Brake Fluid
• Replace the caliper piston seals and dust
seal whenever a brake caliper is disassembled.
1. Install:
• caliper piston seals ①
• dust seals ②
2. Install:
• brake caliper pistons ①
INSTALLING THE FRONT BRAKE
CALIPERS
The following procedure applies to both of the
front brake calipers.
1. Install:
• brake caliper assembly
• bolt flange
48Nm (4.8m · kg,35 ft · lb)
• brake hose ①
• copper washers ②
• union bolt ③
To Next Page
