Hisun HS800UTV - Fuel Tank

To Next Page

To Previous Page

CHASSIS

- 278-

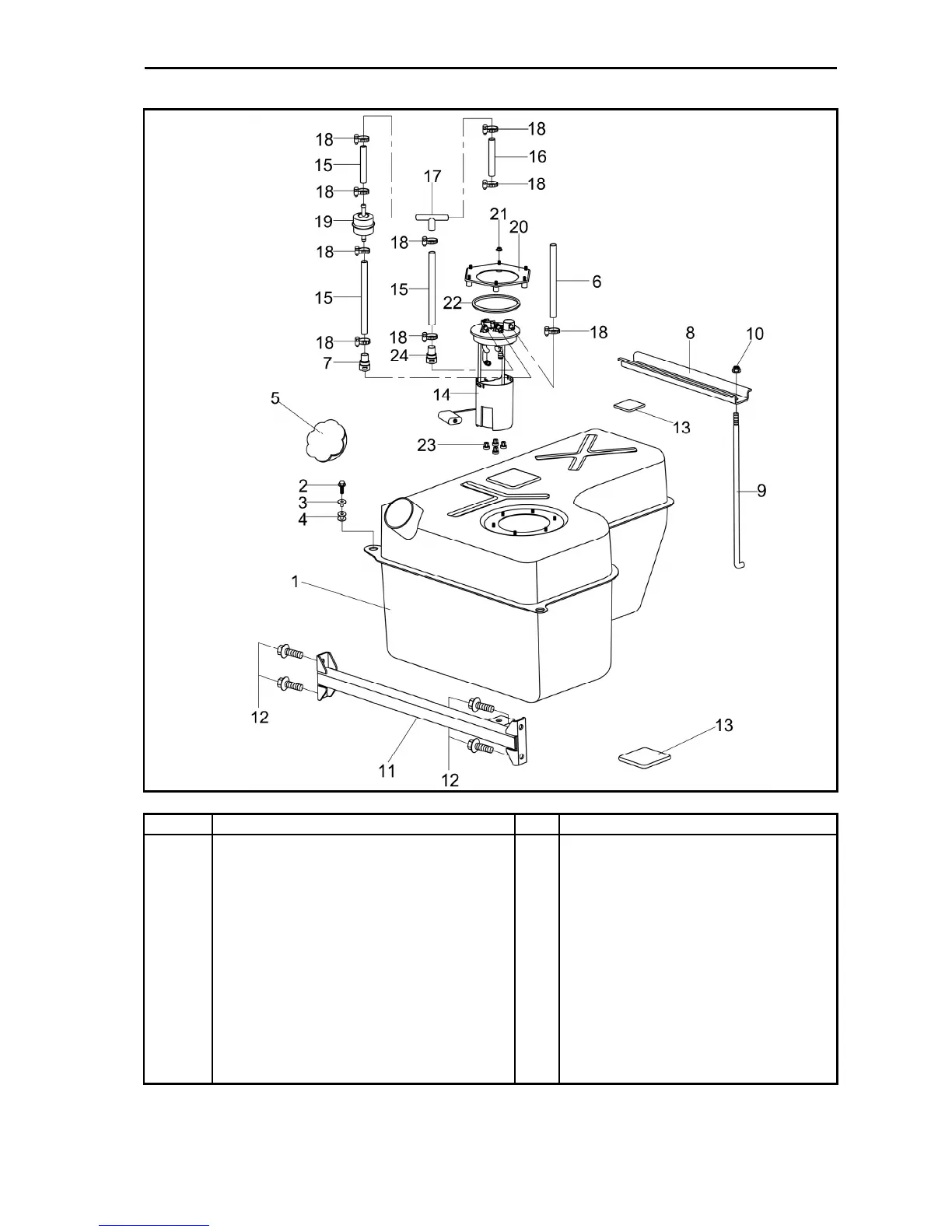

FUEL TANK PARTS

No. Part Name Qty Remarks

Removing the fuel tank

1 Fuel tank assembly 1

2 Bolt , flange M8×25 3

3 Flanging collar Φ8.5 3

4 Robber grommet 3

5 Fuel tank cover 1

6 Ventilate tube Φ9×Φ5×540 1

Connector Ⅰ

8 Hold-down plate, fuel tank 1

9 Hook, fuel tank 1

10 Nut, flange nylex M8 1

11 Fuel tank front yoke assembly 1
