CHASSIS

- 218-

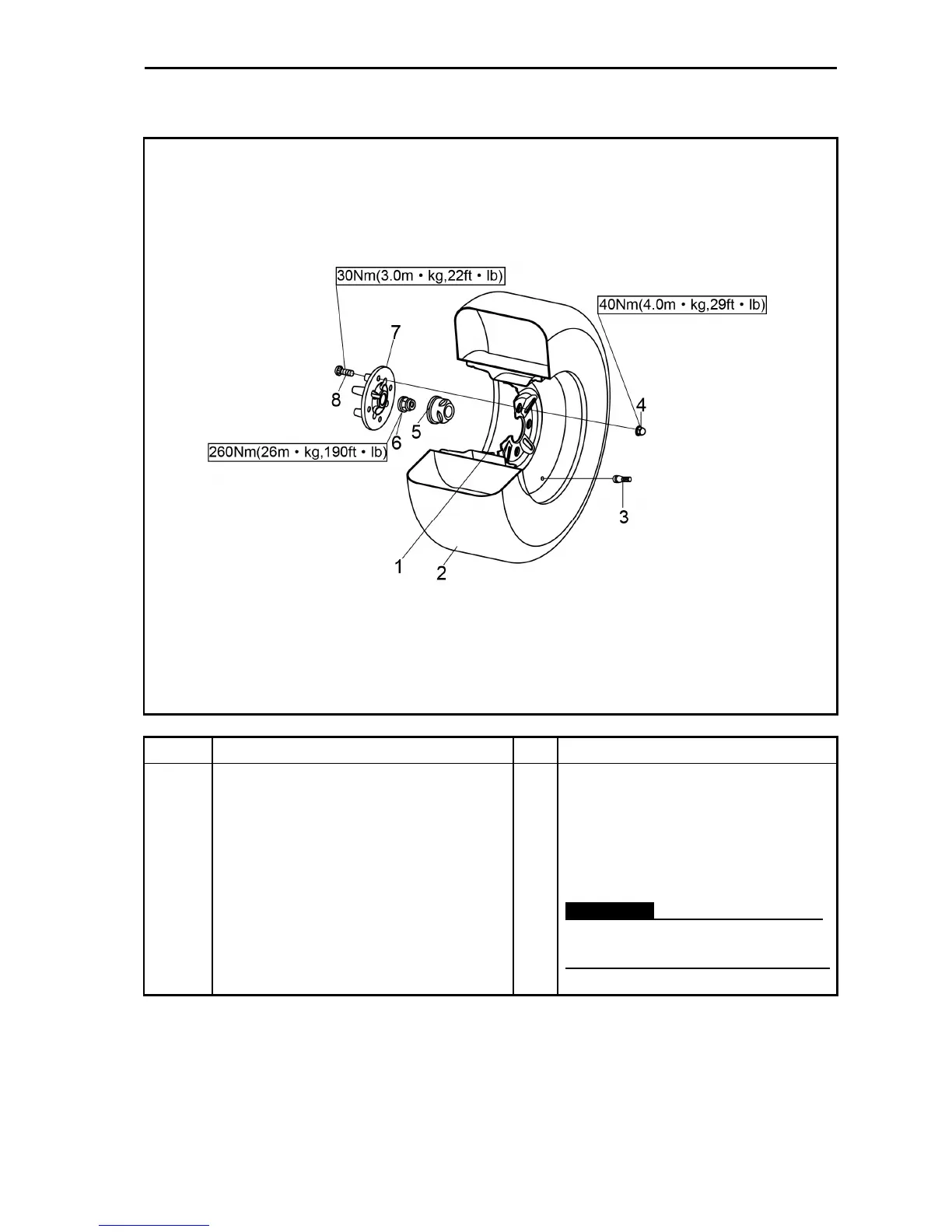

WHEEL AND TYRE PARTS

FRONT WHEELS

No. Part Name

Qty Remarks

Removing the front wheel

1 Front wheel rim 2

2 Front tire 2

3 Valve, rim 2

4 Nut M10×1.25 8

5 Center cap 2

6 Nut M20×1.5 2

7 Soleplate, front wheel hub 2

Bolt 8

WARNING:

Securely support the vehicle so

There is no danger of it falling over.
