CHASSIS
- 212-

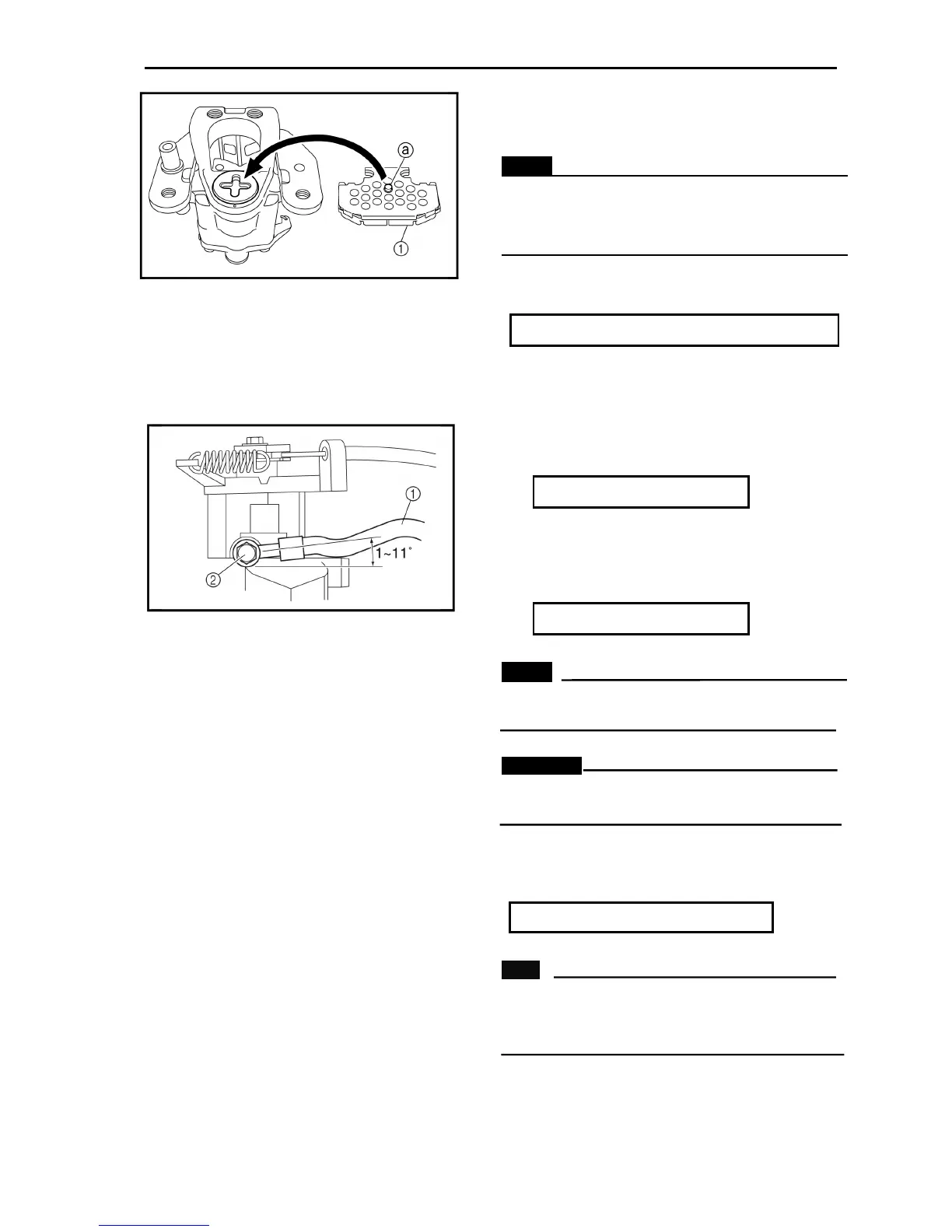

5. Install:
• brake pad (piston side) ①
(with insulator and pad shim)
NOTE:
Align the projection a on the piston side of the
brake pad with the groove in the brake caliper
piston.
6. Install:
• brake pad holding bolts
17Nm (1.7 m · kg,12 ft · lb)
INSTALLING THE REAR BRAKE CALIPER
1. Install:
• brake caliper assembly
• brake caliper mounting bolts
40Nm (4.0m · kg,29 ft · lb)
• brake hose ①
• copper washers
• union bolt ②
48Nm (4.8m · kg,35 ft · lb)
NOTE:
Tighten the union bolt while holding the brake
hose as shown.
WARNING:
Proper brake hose routing is essential to
insure safe vehicle operation.
2. Fill:
• brake reservoir
Must use DOT4 Brake Fluid
Note :
Brake fluid may damage painted surfaces
or plastic parts. Always clean up spilled
brake fluid immediately.
