CHASSIS
- 211-

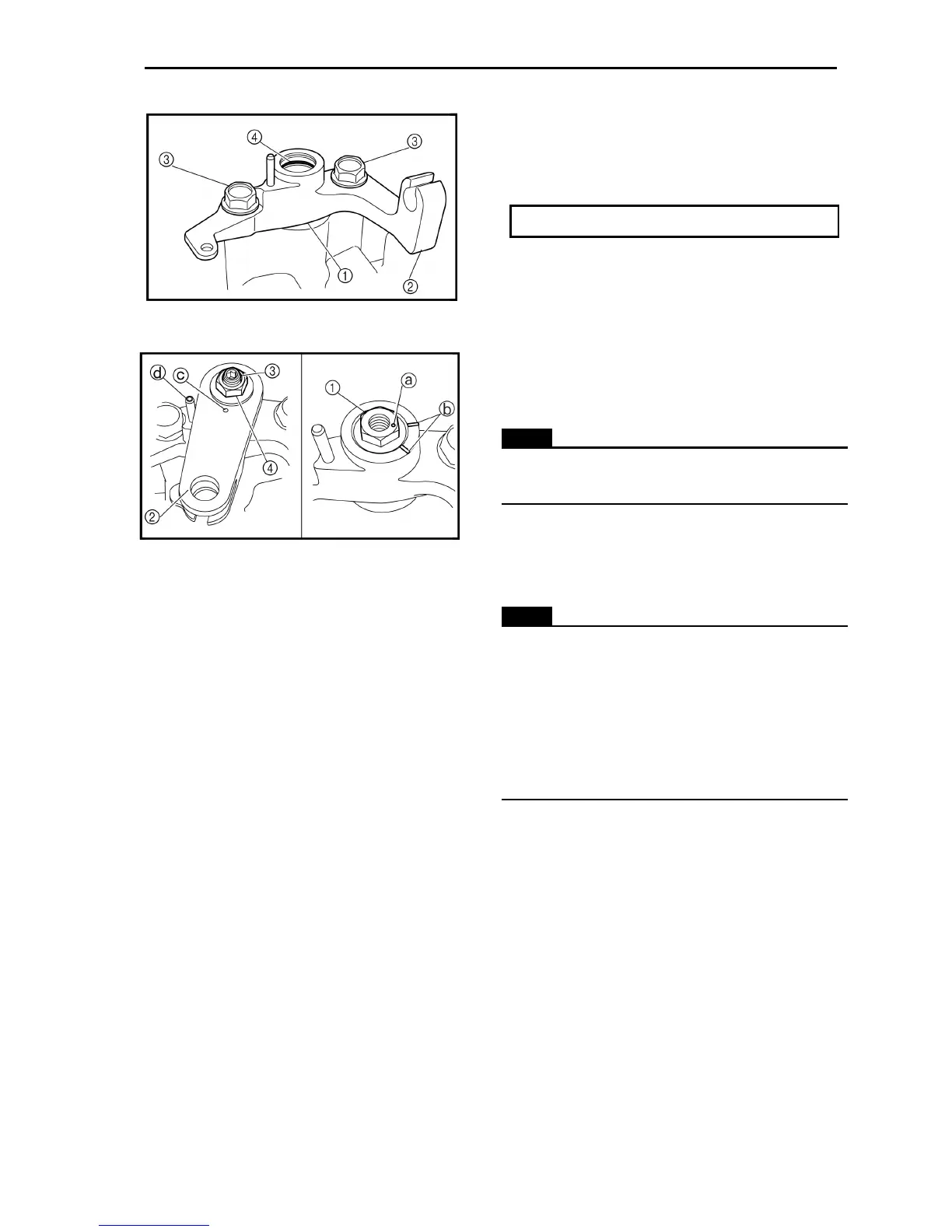

3. Install:
• gasket ①
• parking brake case ②
• parking brake case bolts ③
22Nm (2.2 m · kg,16 ft · lb)
• O-ring ④
4. Install:
• parking brake arm shaft ①
• parking brake arm ②
• set bolt ③
• parking brake arm nut ④
NOTE:
Apply lithium-soap-based grease to the parking
brake arm shaft and set bolt.
a. Screw in the parking brake arm shaft
counterclockwise completely so that the punch
mark ⓐ on the parking brake arm shaft is
between the alignment marks ⓑ.
NOTE:
The hole for the parking brake arm shaft has
multiple threads. If the punch mark ⓐ on the
parking brake arm shaft is not between the
alignment marks ⓑ when the parking brake
arm shaft is screwed in completely, remove the
parking brake arm shaft and screw it in from a
different starting position.
b. Turn the parking brake arm shaft approx-
imately 60° clockwise.
c. Install the parking brake arm to the parking
brake arm shaft so that the punch mark ⓒ on
the parking brake arm is aligned with the punch
mark ⓐon the parking brake arm shaft.
d. Turn the parking brake arm until it contacts the
pin ⓓ.
e. Finger tighten the set bolt.
f. Tighten the parking brake arm nut.
