ASSEMBLING THE WATER PUMP

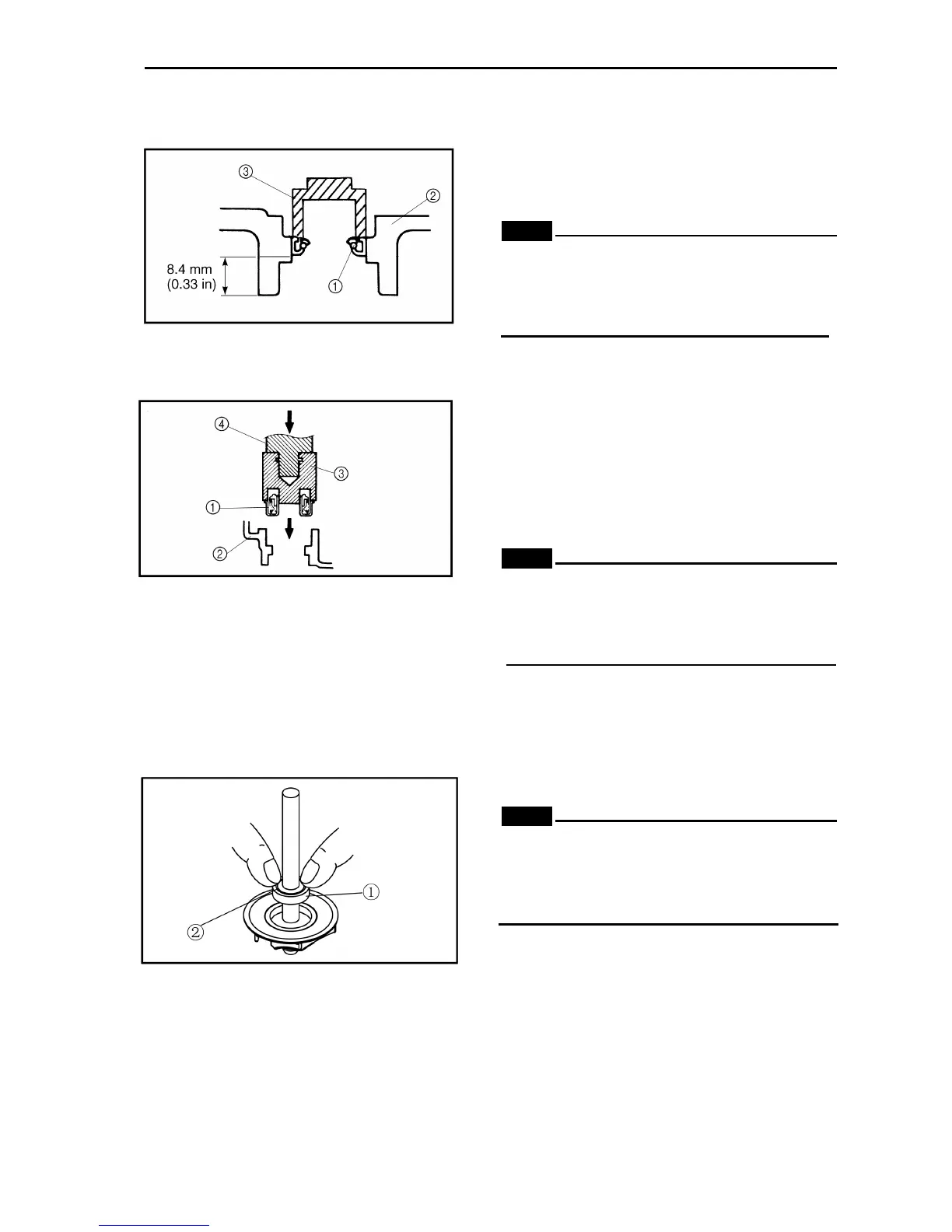

1. Install:
• oil seal ①
(into the water pump housing ②)
NOTE:
• Before installing the oil seal, apply tap water
or coolant onto its outer surface.
• Install the oil seal with a socket ③ that
matches its outside diameter.
2. Install:
• water pump seal ①
(into the water pump housing ②)
• mechanical seal installer and water pump seal
installer ③
• water pump seal installer ④
NOTE:
•Never lubricate the water pump seal surface
with oil or grease.
•Install the water pump seal with the special
tools.
3. Install:
• rubber damper ①
• rubber damper holder ②
NOTE:
•Before installing the rubber damper, apply tap
water or coolant onto its outer surface.
•Make sure that the rubber damper and rubber
damper holder are flush with the impeller.
