CHASSIS

- 221-

INSTALLING THE WHEEL HUB

1. Install:

• axle nut

260 Nm (26.0 m · kg, 190 ft · lb)

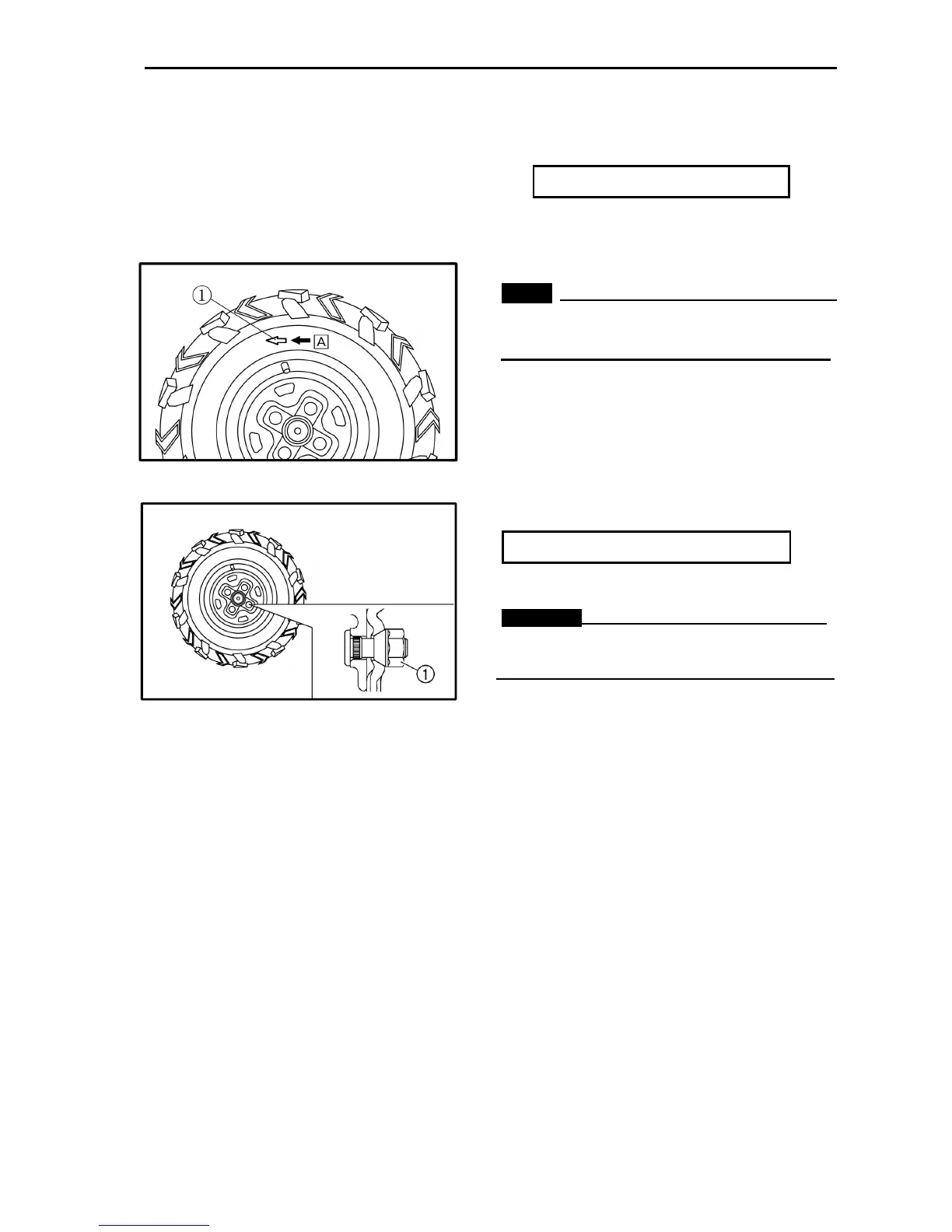

INSTALLING THE WHEEL TYRE

1. Install:

• wheel

NOTE:

The arrow mark ① on the tyre must point in

the direction of rotation □

of the wheel.

2. Tighten:

• wheel nuts ①

WARNING:

Tapered wheel nuts ① are used for both the

front and rear wheels. Install each nut

The angle of the conical bores is 60°
