Hisun HS800UTV - Page 201

To Next Page

To Previous Page

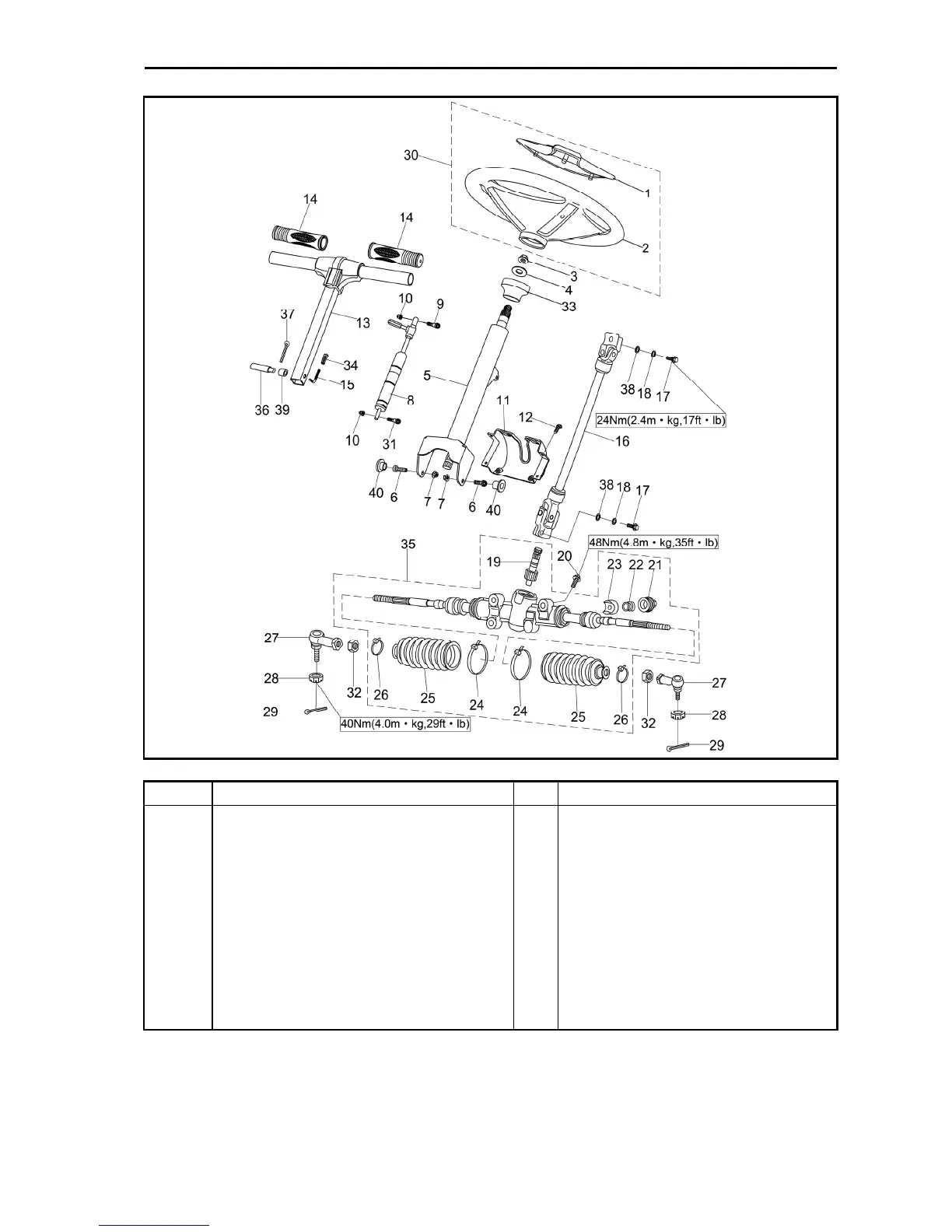

CHASSIS

- 187-

No. Part Name Qty Remarks

32 Nut M10×1.25 2

33 Direction of column 1

34 Locking knob grip, handle bar 1

35 Steering machine parts 1

36 Pin 1

37 Cotter pin Φ3.5×20 1

38 Washer Φ8 2

39 Bushing Φ8.5×Φ13×6.5 1

40 Nylon cover, steering machine 2
