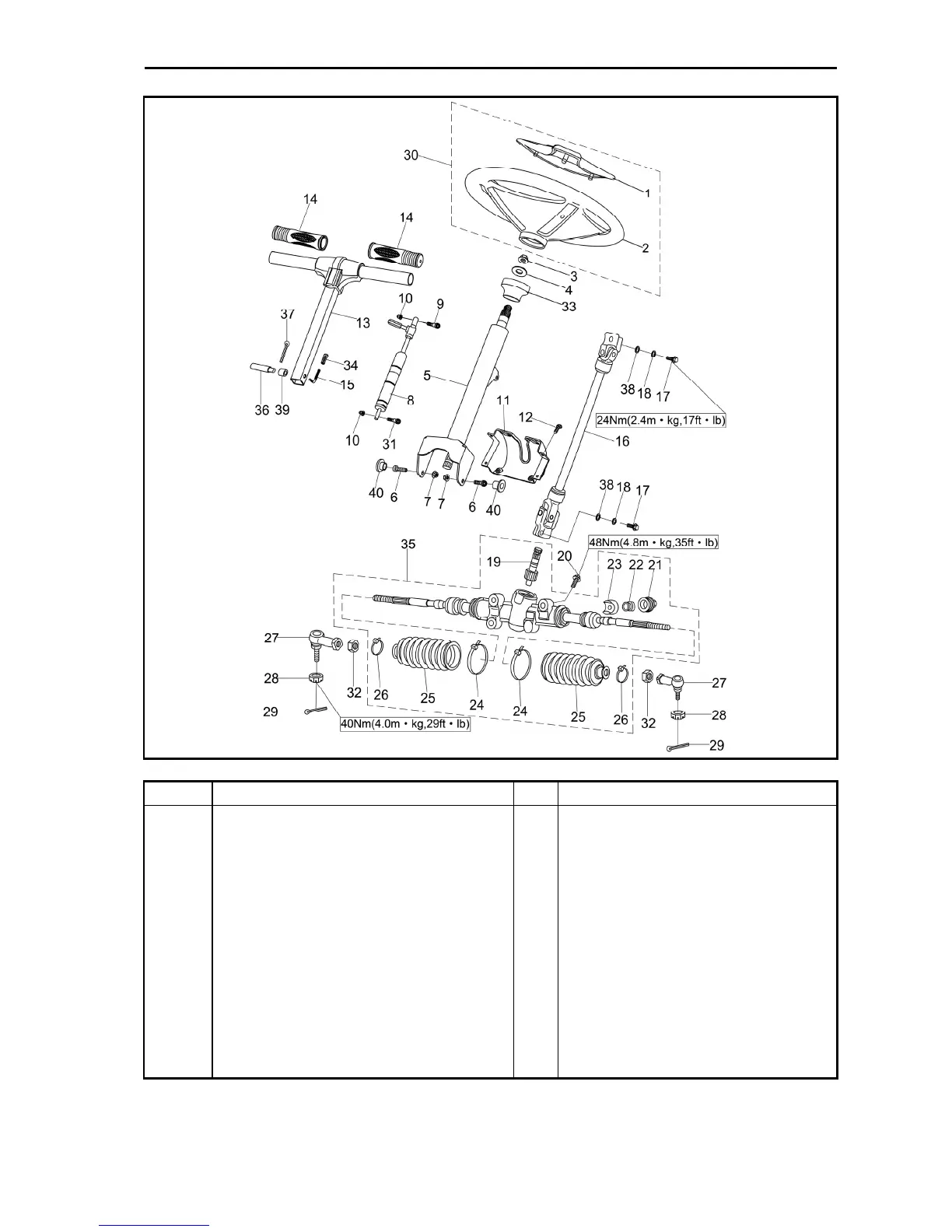

CHASSIS

- 186-

No. Part Name Qty Remarks

21 Adjuster 2

22 Spring 1

23 Pressure pad 2

24 Plastic locking tie L=300 2

25 Dust boot 2

26 Plastic locking tie L=120 2

27 Tie-rod end 2

28 Notch nut M10×1.25 2

29 Pin Φ3.5×20 2

30 Steering wheel parts 1

31 Bolt M6×11-Φ8×13 1
