MAINTENANCE AND ADJUSTMENT OF THE UTV
- 93 -
with a thin coat of lithium-soap-based grease.
NOTE:
Make sure that the O-ring ③ is positioned
correctly in the groove of the oil filter cartridge.
·Tighten the new oil filter cartridge to specification
with an oil filter wrench.
Oil filter cartridge
17 Nm (1.7 m · kg)

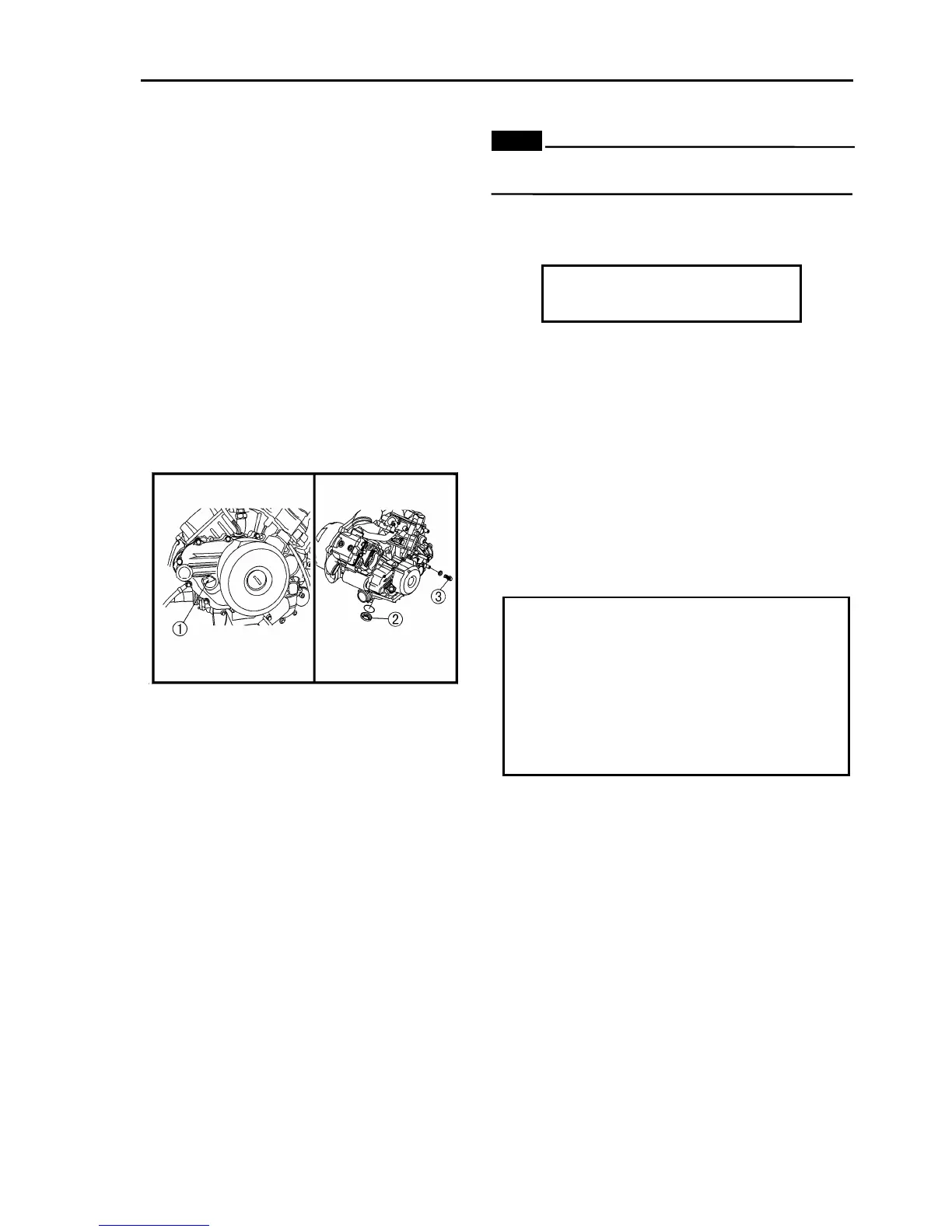

6. Install：
·engine oil drain bolt ②
·Final gear oil drain bolt ③
7. conditions
·Change for new oil filter before impouring oil to
crankcase, and make sure it is in good working
condition before assembling.
·make sure that the oil reach regular level when the
vehicle is placed on flat ground.
Oil level of gearbox
Periodic oil change
The oil capacity after the engine is
disassembled and reassembled.
2L
The oil should be put into the engine for after
all the oil is drawn out
2L
8. Install:
·engine oil filler plug
9. Worm up the engine for a few minutes, and then
stop the engine.
10. Check:
·engine (for engine oil leaks)
·refer to Chapter 4 check the level of engine oil
11. Check:
·engine oil pressure
12. Install:
·console
·passenger seat
·driver seat
Refer to “SEATS” in chapter 5.
