ENGINE
- 180 -

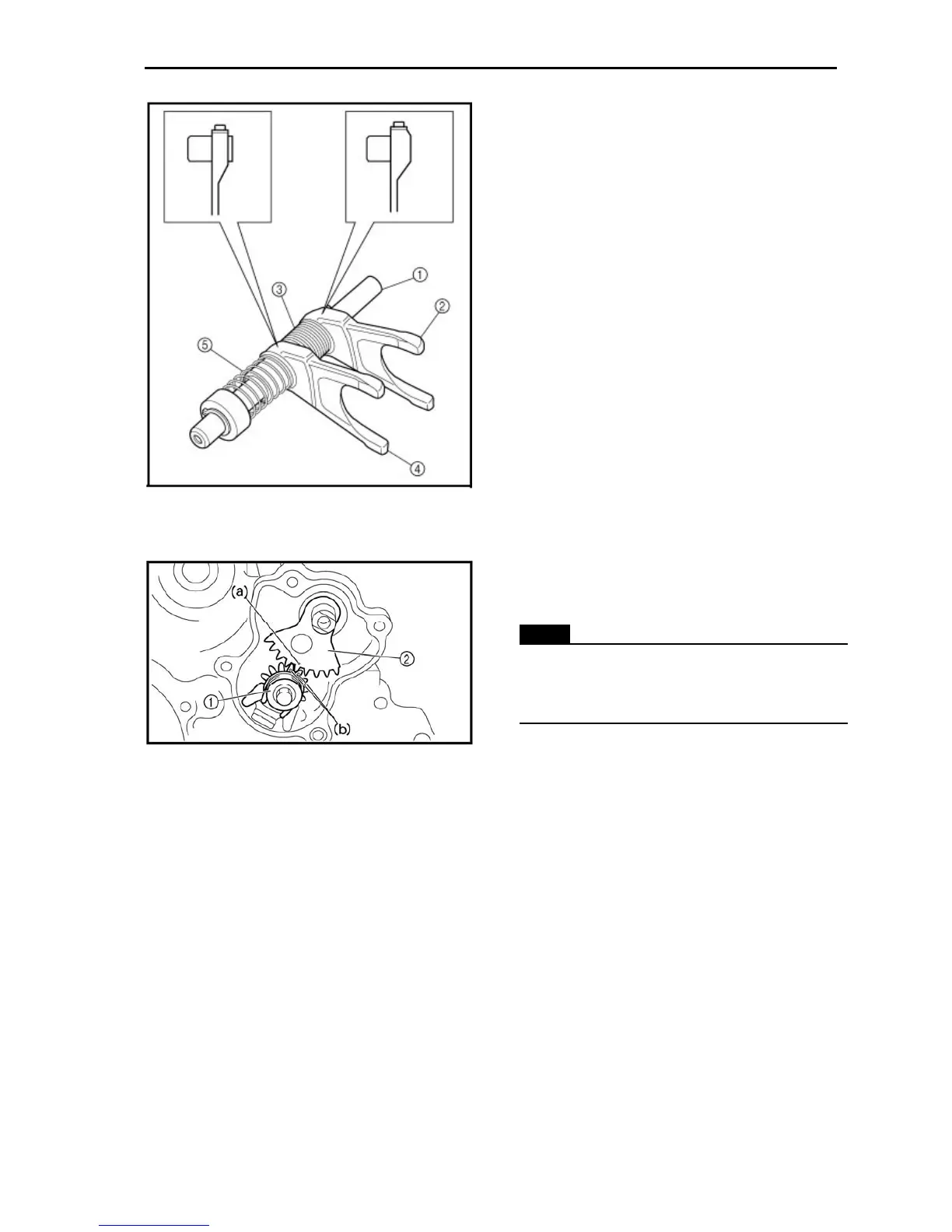

3、INSTALL
1). Assembling the shift fork
• guide bar ①
• shift fork 2 ②
• long spring ③
• shift fork 1 ④
• short spring ⑤
2). Installing the shift levers
• shift lever 2 assembly ① (14Nm)
• shift lever 1 ②
NOTE:
When installing the shift lever 1, align the
punch mark (a) on the shift lever 1 with the
punch marks (b) on the shift lever 2.
3). Assembling the oil pump
• inner rotor
• outer rotor
• oil pump shaft
(with the recommended lubricant)
