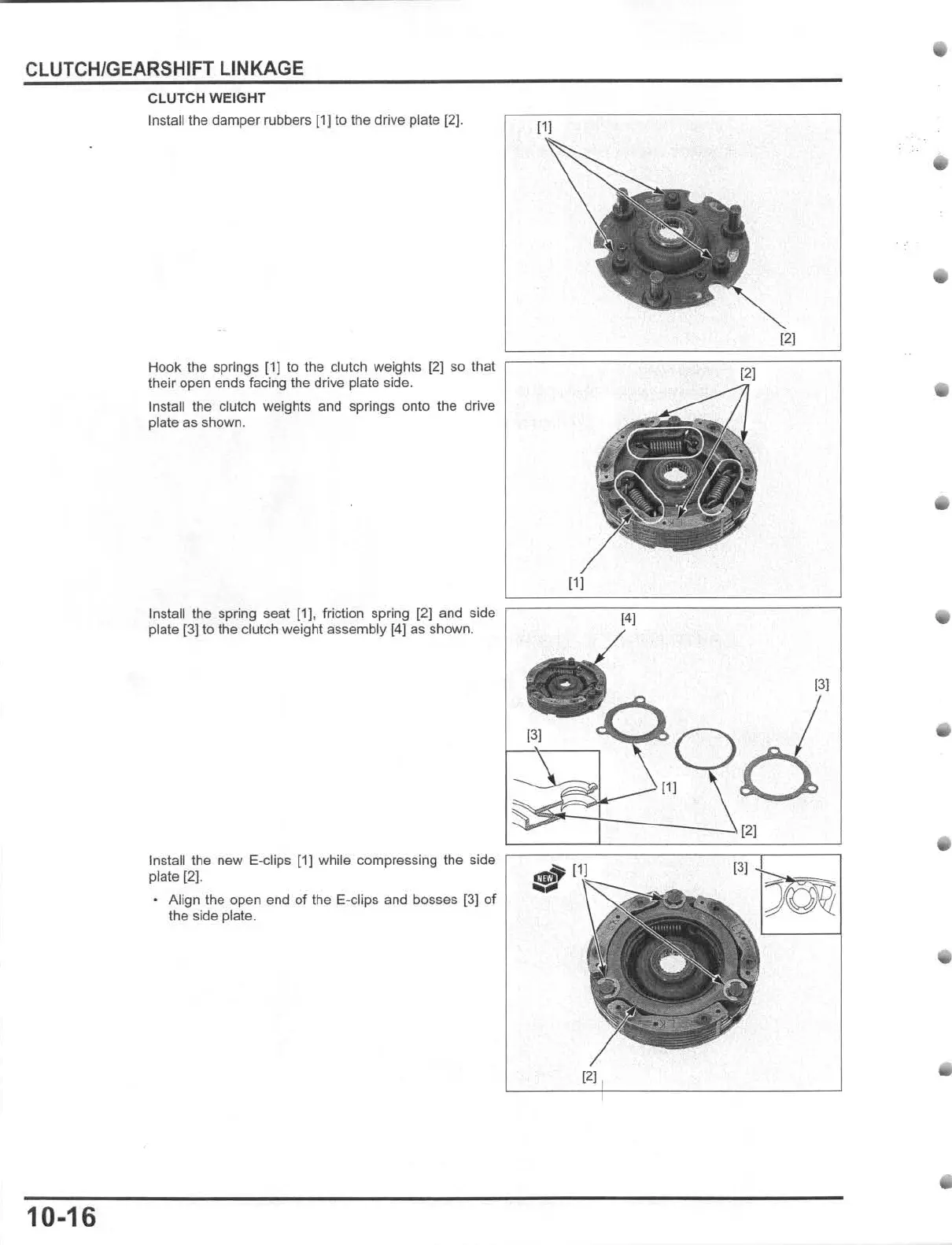

CLUTCH/GEARSHIFT LINKAGE
CLUTCH WEIGHT
Inslallths damper rubbers [1J to the drive plate 1 2].
[21
H oo k the springs ( 1] to the clutch weights 12] so tha t ;::============ [2 :: J ===~
their open ends facing the dr ive plale side.
10-16
Install the clutch weights and springs onto the drive
plate as shown .
Install th e spring seat [1] , fri ction spring [2) and side
plale (3] to the clutch weight assembly [4J as shown.
Inslall the new
E-dips [1] while compressing the side
plate [2].
Align the open end of the E-clips and bosses [3J of
the side plale.
[4[
