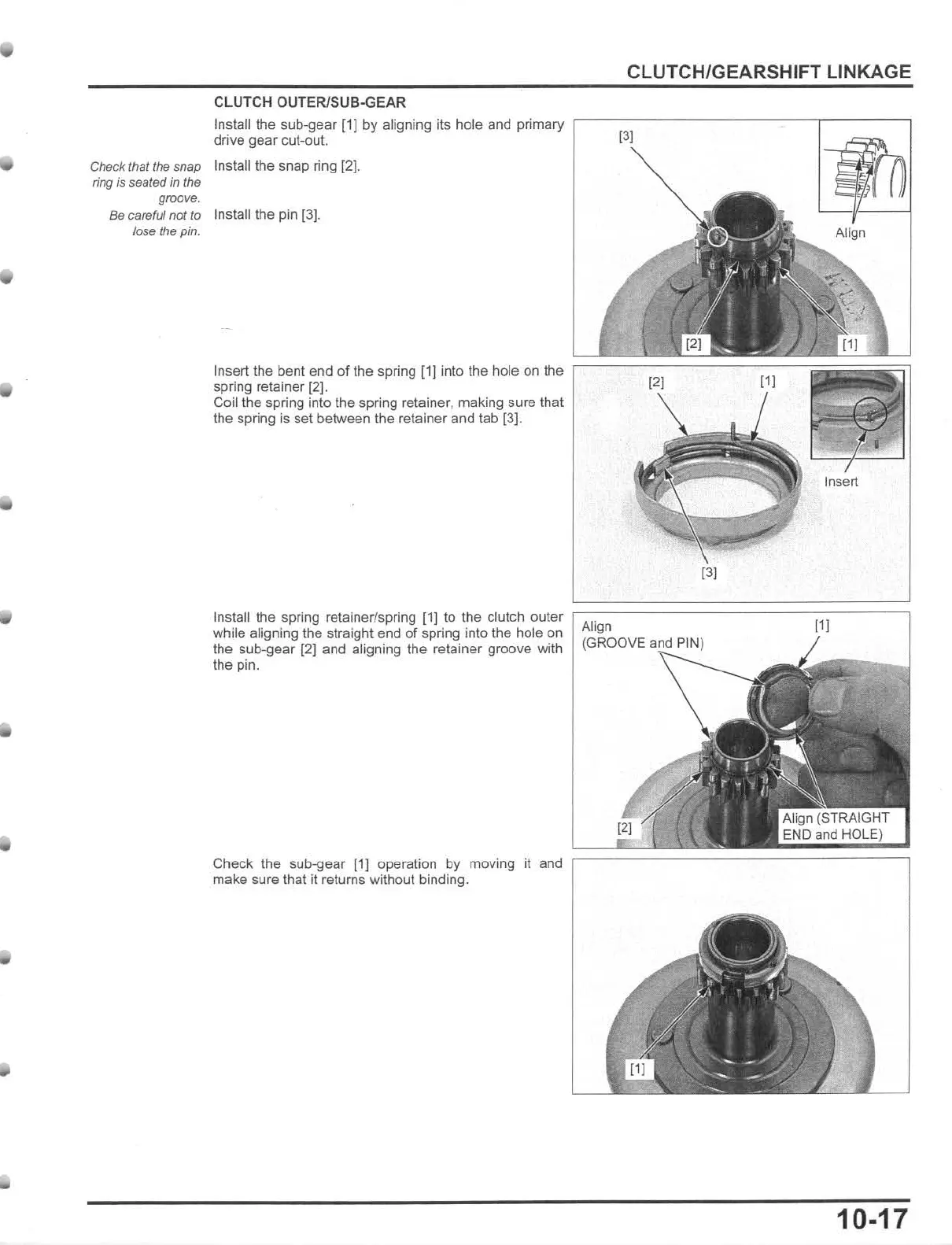

CLUTCH/GEARSHIFT LINKAGE
CLUTCH OUTERISUB-GEAR
Install the sub-gear
[1)
by aligning its hole and primary
,------------
-,------,
drive gear cut-out
Checklhatthesnap Install the snap ring [2].
ring
is seated
in
the
groove.
Be
careful not
10
Inslallthe
pin
[3).
lose the pin.
Insert the benl end of the spring
[1
J into the hole on the
;:::~~
==
~!olII
~~iII::
~~~~~~~~~
~
spring retainer
[2J.
Coil
th
e spring into the spring retainer, making
su
re that
the spring
is
set between the retainer and tab [3].
Install the spring retainer/spring
[1)
to
the clutch outer
;::==
========
===
1='=1
=
==~
while aligning the straight end of spring into the hole on Align
the sub-gear
[2]
and aligning the retainer groove with (GROOVE and PIN)
the pin.
Check the sub-gear
[11
operation by moving it and
make sure thai
it
re
tu
rns without binding.
10-17
