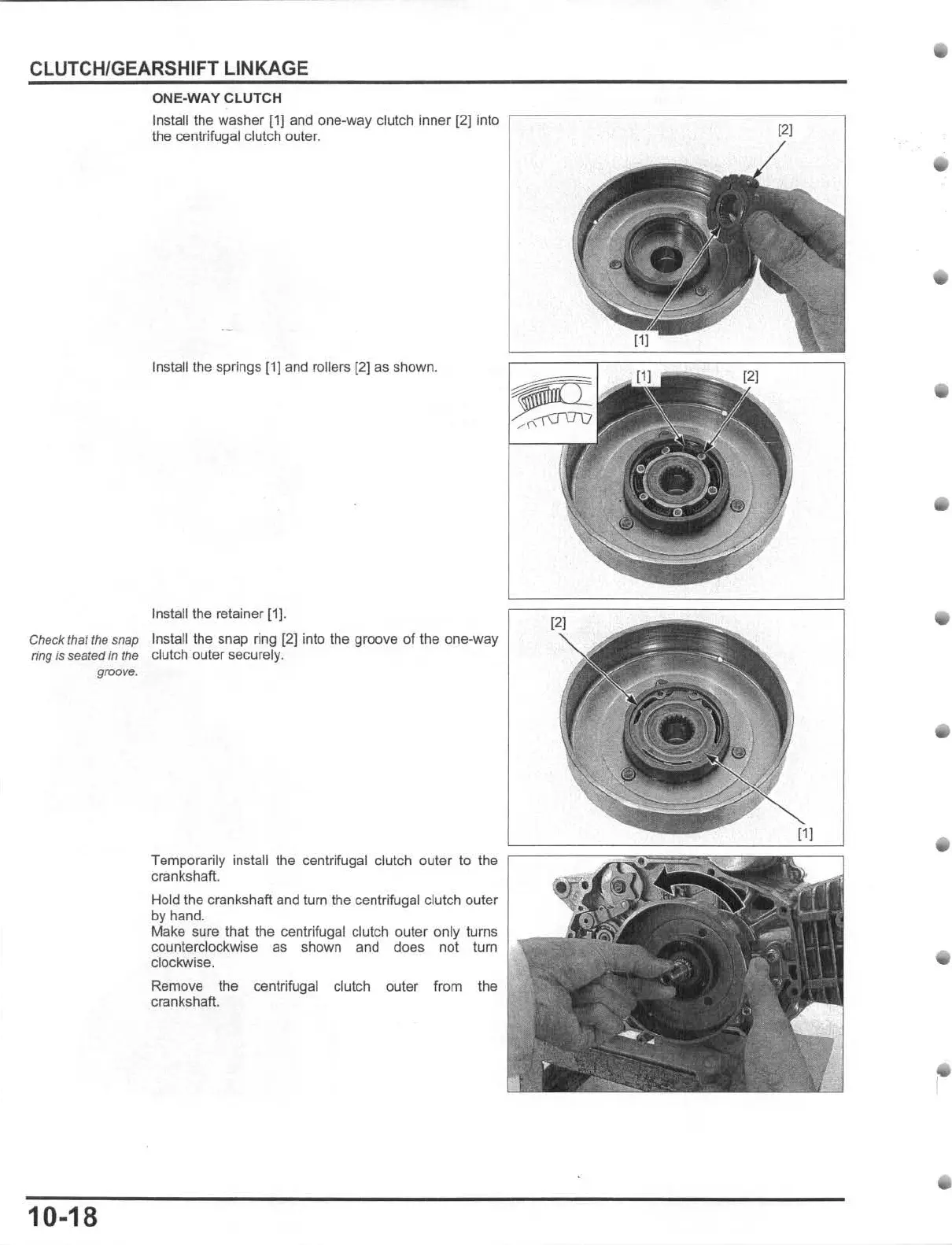

CLUTCH/GEARSHIFT LINKAGE
ONE-WAY CLUTCH
Insl
allthe
washer
[1)
and one-way clutch Inner
[2)
in
to
the centrifugal clutch outer.
Install the springs [1] and rollers [2] as shown.
Insleli the retainer [1}.
Check that the snap Install the snap ring
[2)
into the groove
of
the one-way
ring is seated in Ihe clutch Quter securely.
groove
.
10·18
Temporarily install the centrifugal clutch outer
to
the
~=~~
~~~
~~i~~~iii
i~
~~
crankshaft. I
Hold the crankshaft and turn the centrifugal clutch
outer
by hand.
Make sure that the centrifugal clutch outer only turns
counterclockwise
as
shown
and
does
not
tum
clockwise.
Remove
the
centrifugal clutch outer from
the
crankshaft.
