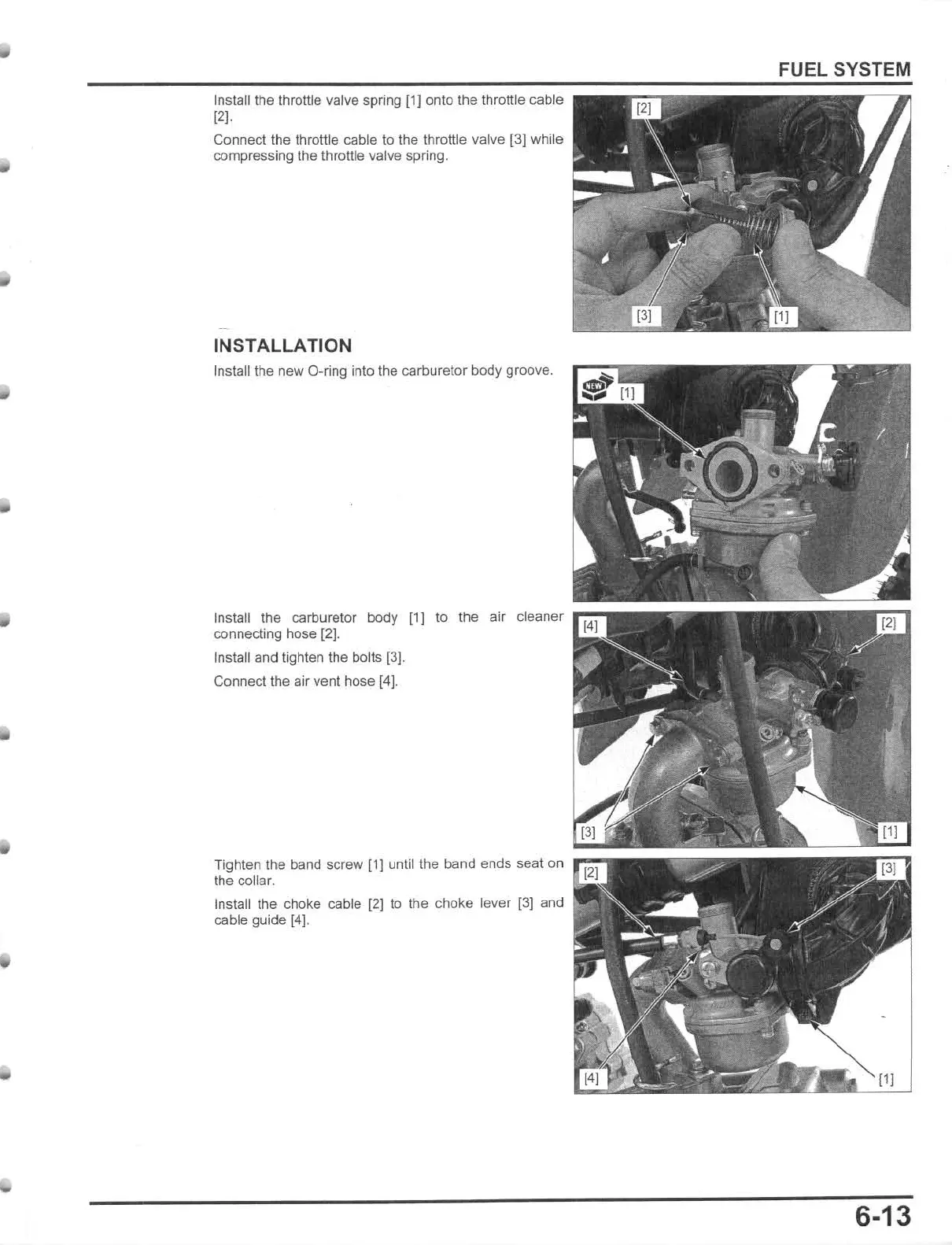

Install the throttle valve spring
[1
J onto
the
throttle cable
[2).
Connect the throttle cable to the throttle valve [3] while
compressing the throttle valve spring.
[NSTALLA
T)ON
Install the new
D·ring
into the carburetor body groove.
Install the carburetor
body
[1]
to
the
air
cleaner
connecting hose
[2].
Install and tighten the bolts
(3]
.
Connect
the
air
vent
hose
[4]
.
Tighten the band screw (1] until the band ends seat
on
the collar.
Install the choke cable [2] to
the
choke
lever
(31
and
cable guide
[41
.
FUEL SYSTEM
6-13
