FUEL SYSTEM
6-14

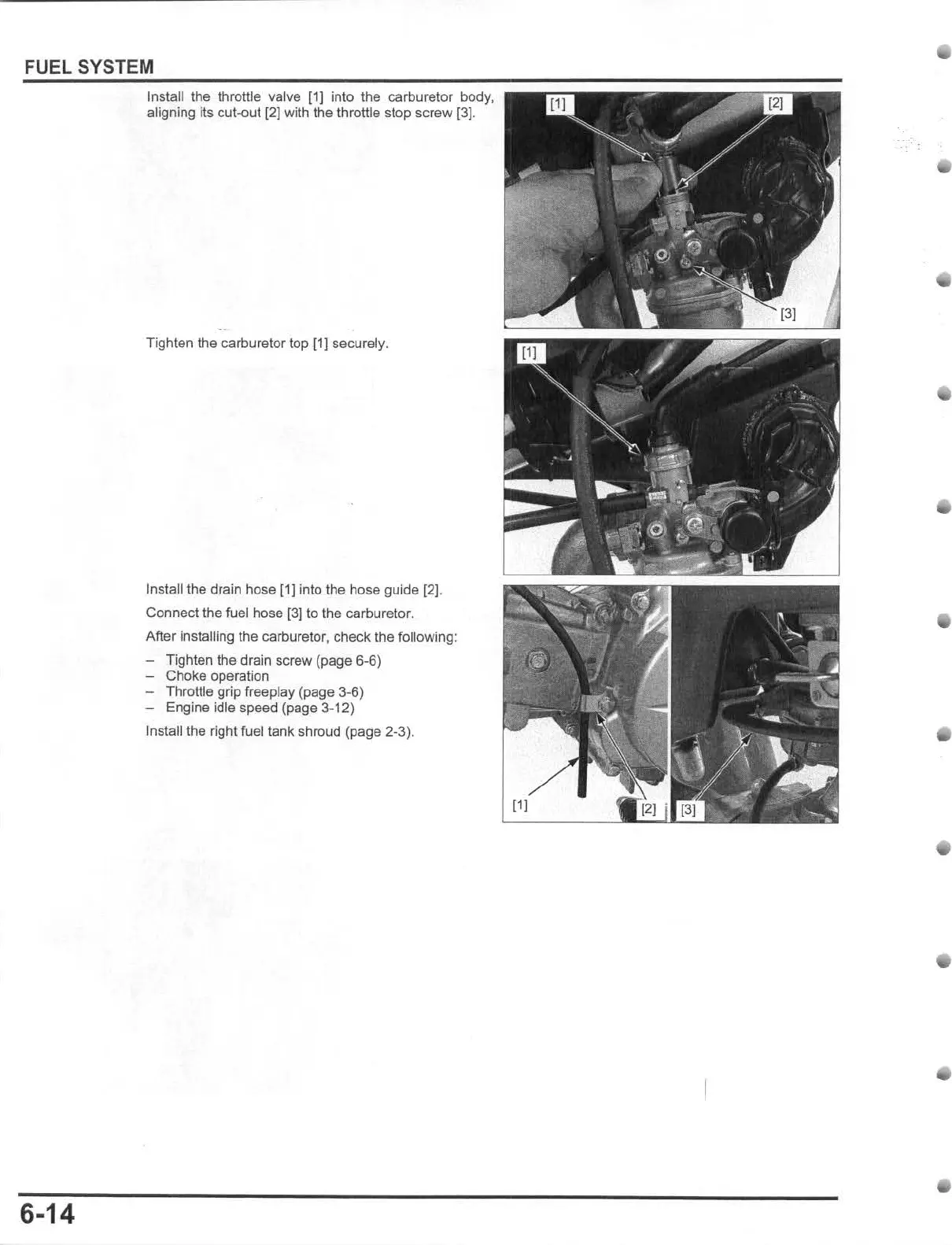

Install the throttle valve
[1
} into the cartluretor
body,
aligning its cut-out
12]
with
the throttle stop screw [3).
Tighten the carburetor top [1] securely.
Inslallthe
drain hose !1] into Ihe
hose
guide [2).
Connect the fuel hose [3]10 the carburetor.
After installing the carburetor, check the following:
- Tighten the drain screw (page 6-6)
- Choke operation
- Throttle grip free play (page 3-6)
- Engine idle speed (page 3-12)
Install the right fuel lank shroud (page 2-3).
•
•
