Operation - Calibration
Part No.: 4418309_Rev09 Fusion4 MSC-L
Honeywell Installation & Operation Manual 5 - 271

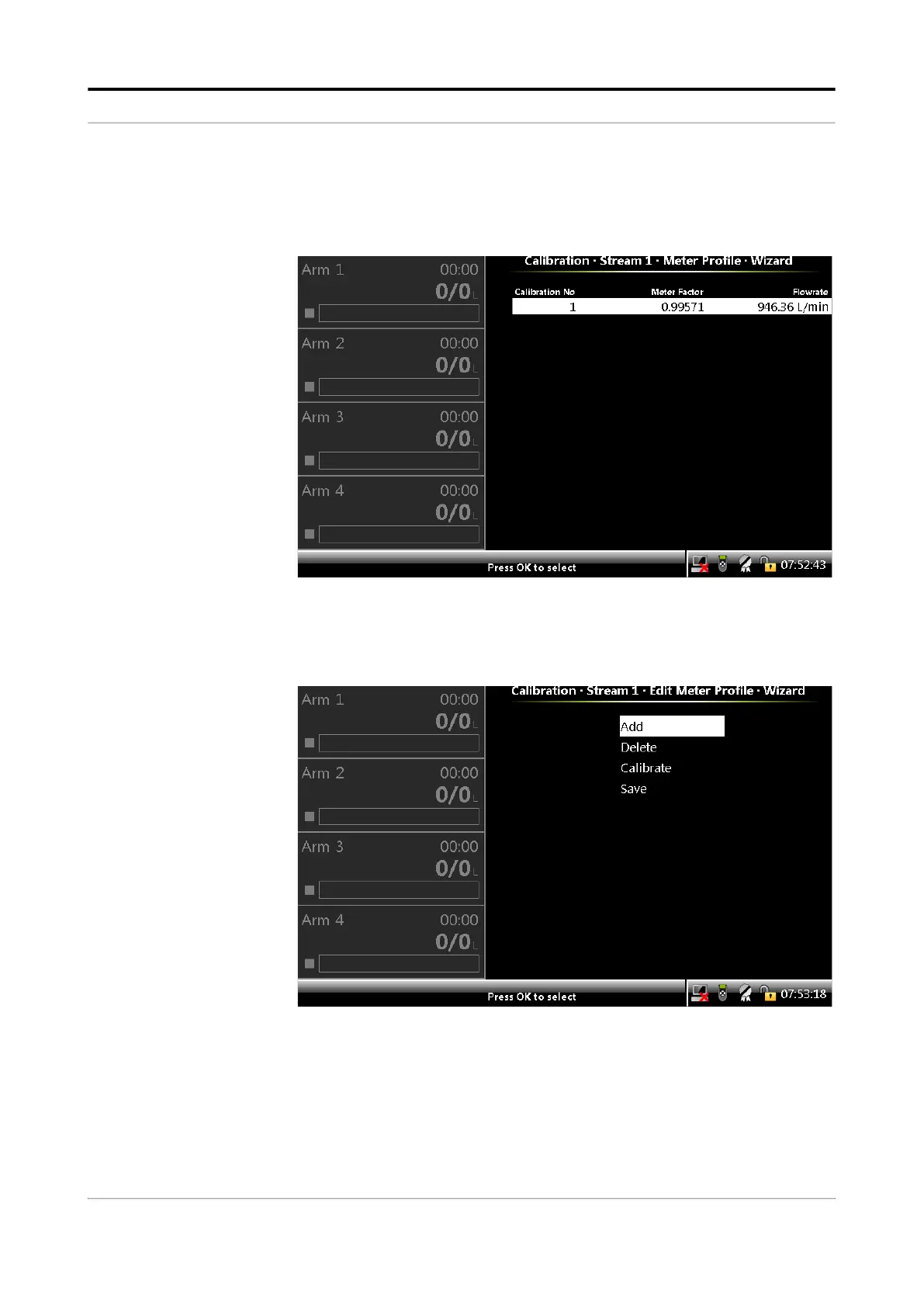

The Calibration . Stream n . Meter Profile Wizard screen appears,
which displays the latest calibrated point with the new meter factor.
13. Select <OK> on the IR controller or LAD.
The Calibration . Stream n . Edit Meter Profile Wizard screen
appears, on which the options to save or delete the calibration point
are available.
14. Select <OK> on the IR controller or LAD to save the calibration point.
The Calibration . Stream n . Wizard screen appears, which
displays the Meter Factor(old), Flowrate(old), Meter Factor, and
Flowrate.
