Honeywell Fusion4 MSC-L User Manual

System Description - Hardware Structure
Fusion4 MSC-L Part No.: 4418309_Rev09
3- 22 Installation & Operation Manual
Honeywell
The lid of the metal housing is connected to the MSC enclosure through
a separate GND signal transmitted through the GND cable, as
displayed in FIGURE 3-14.

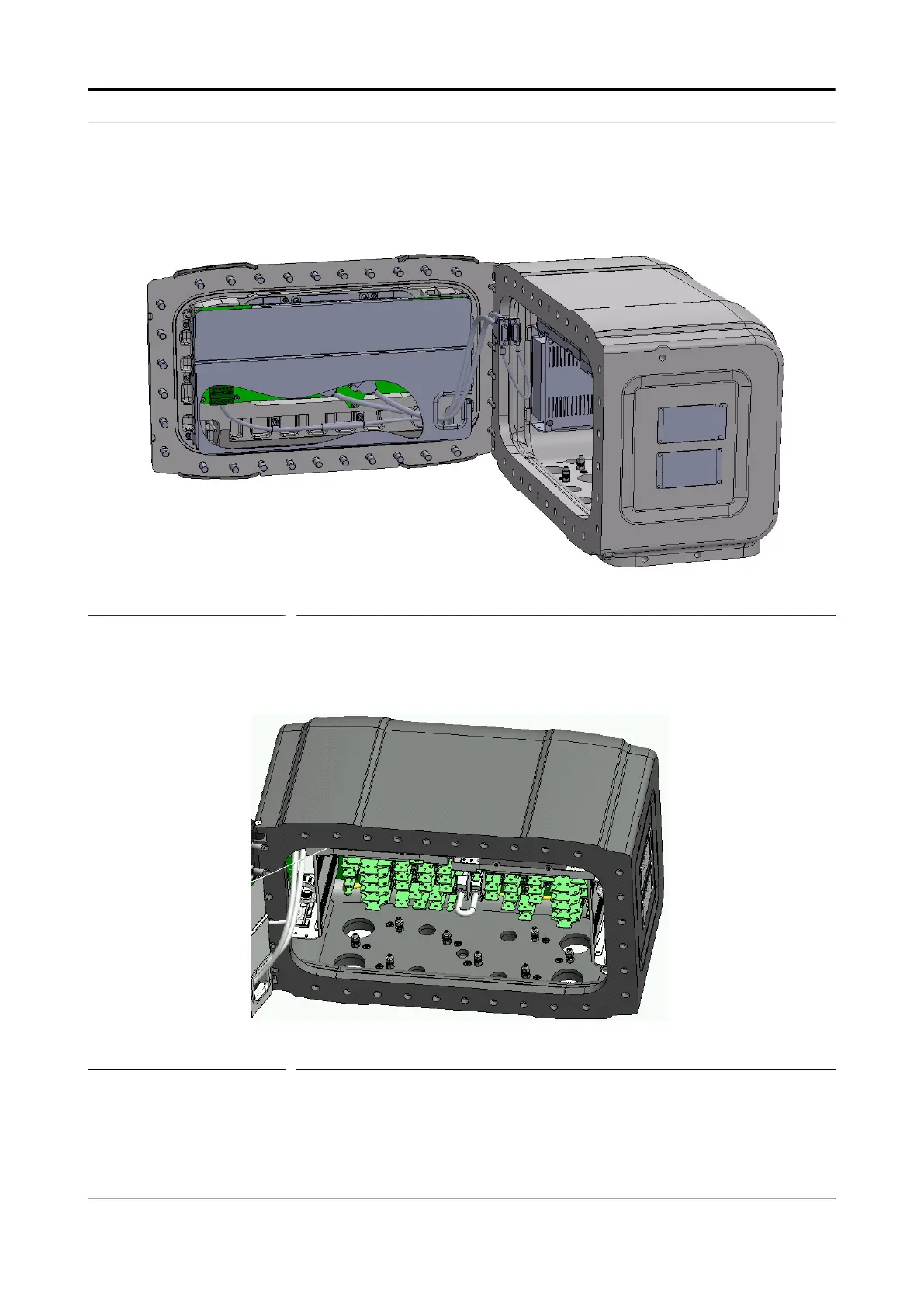

FIGURE 3-14 Cable (GND cable) used for grounding the lid of the MSC enclosure
The Protected Earth (PE) ground connections for external cables are
connected to one of the nine M4 studs at the bottom, using the gland
entries, as displayed in FIGURE 3-15.
FIGURE 3-15 PE ground connections for external cables
