HP V1910 - Page 141

129

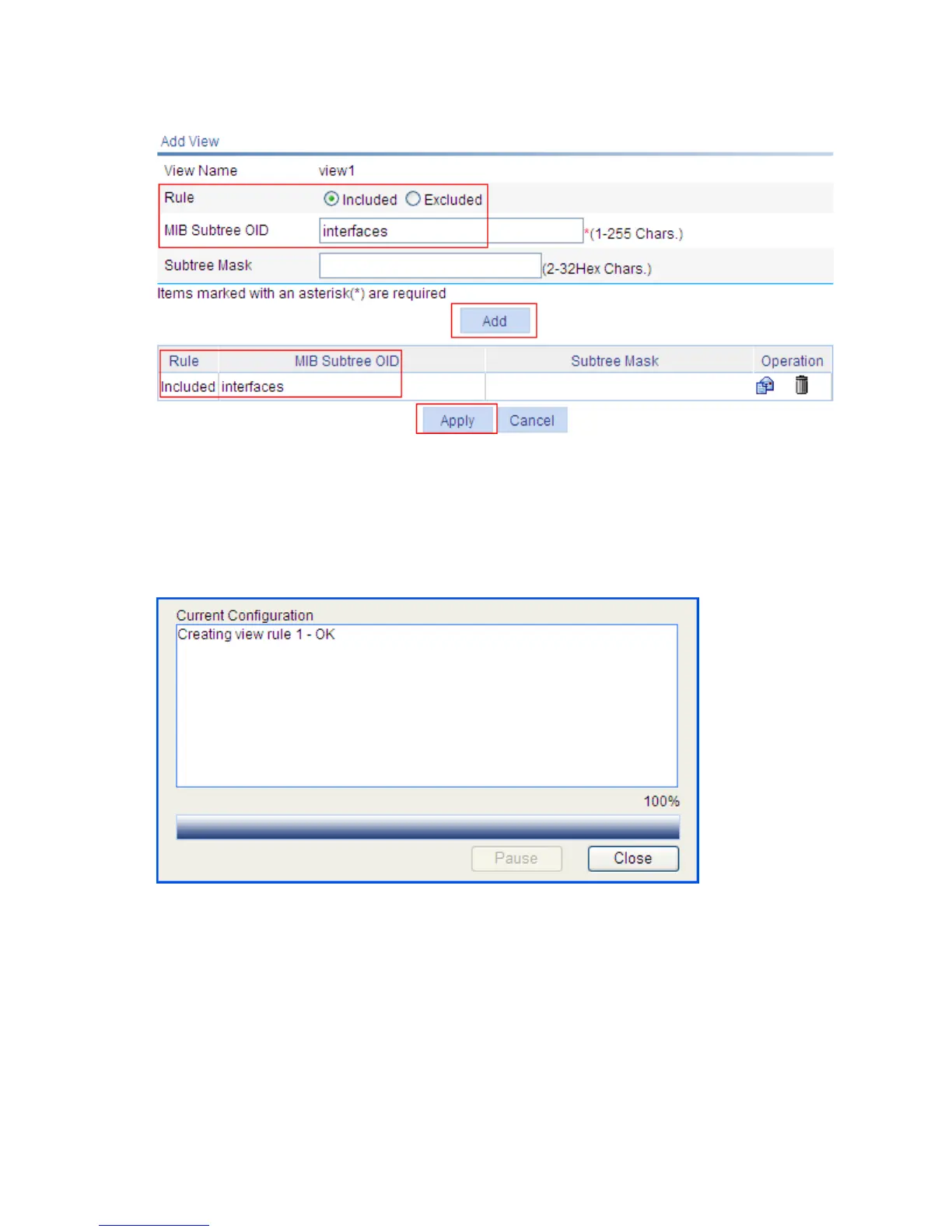

d. Create an SNMP view (2)
 Select the Included radio box.
 Type the MIB subtree OID interfaces.
 Click Add.
 Click Apply. A configuration progress dialog box appears, as shown in e.
e. Configuration progress dialog box
 After the configuration process is complete, click Close.
# Configure an SNMP group.
 Click the Group tab and then click Add to enter the page as shown in f.
