HP V1910 User Manual

131
 Click Apply.
# Enable the agent to send SNMP traps.

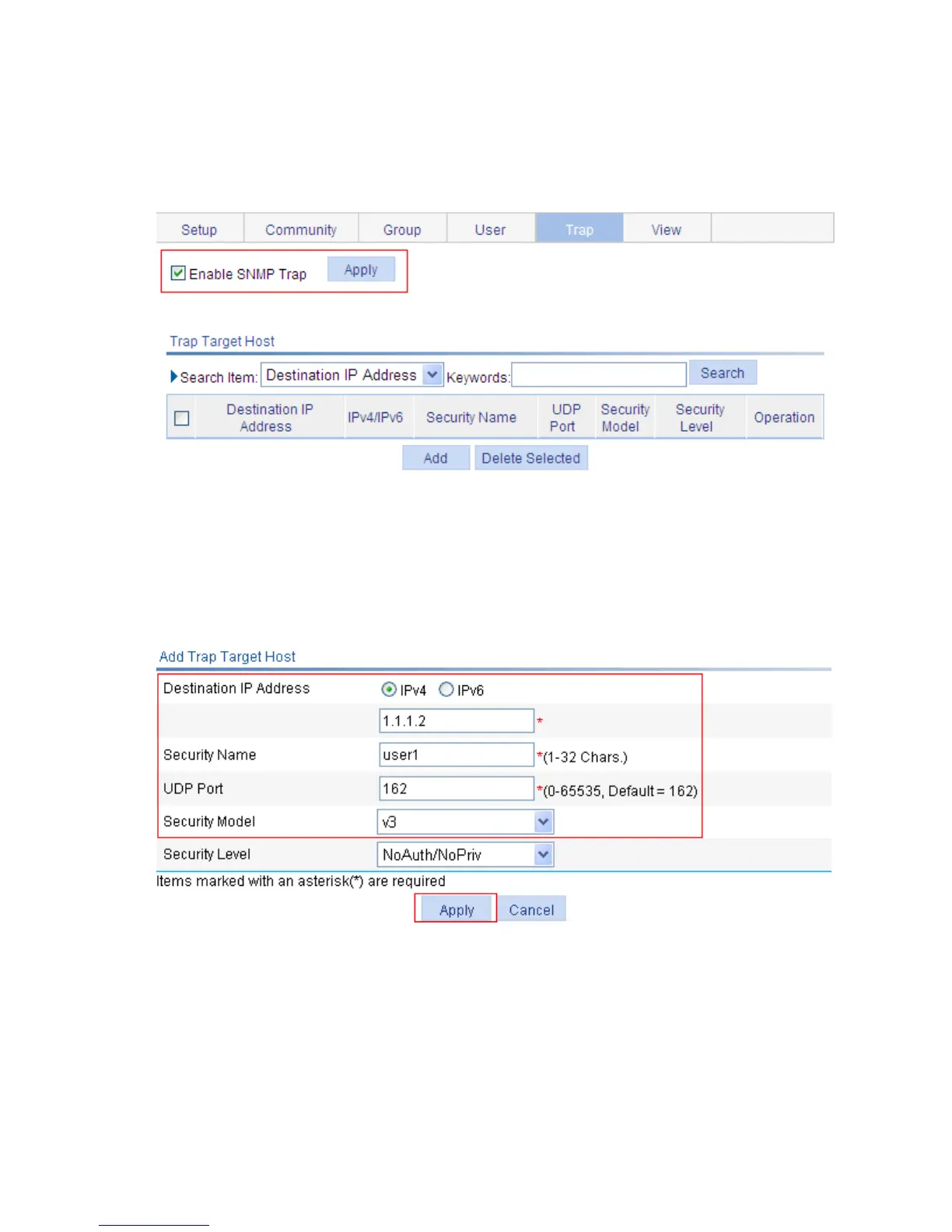

 Click the Trap tab and enter the page as shown in h.
h. Enable the agent to send SNMP traps
 Select the Enable SNMP Trap check-box.
 Click Apply.
# Add the target hosts of SNMP traps.
 Click Add to enter the page as shown in i.
i. Add target hosts of SNMP traps
 Select the destination IP address type as IPv4.
 Type the destination address 1.1.1.2.
 Type the user name user1.
 Select v3 from the Security Model drop-down box.
 Click Apply.
Table 43 Configure NMS.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
