HP V1910 User Manual

166
Configuration procedure
# Create VLAN 2.

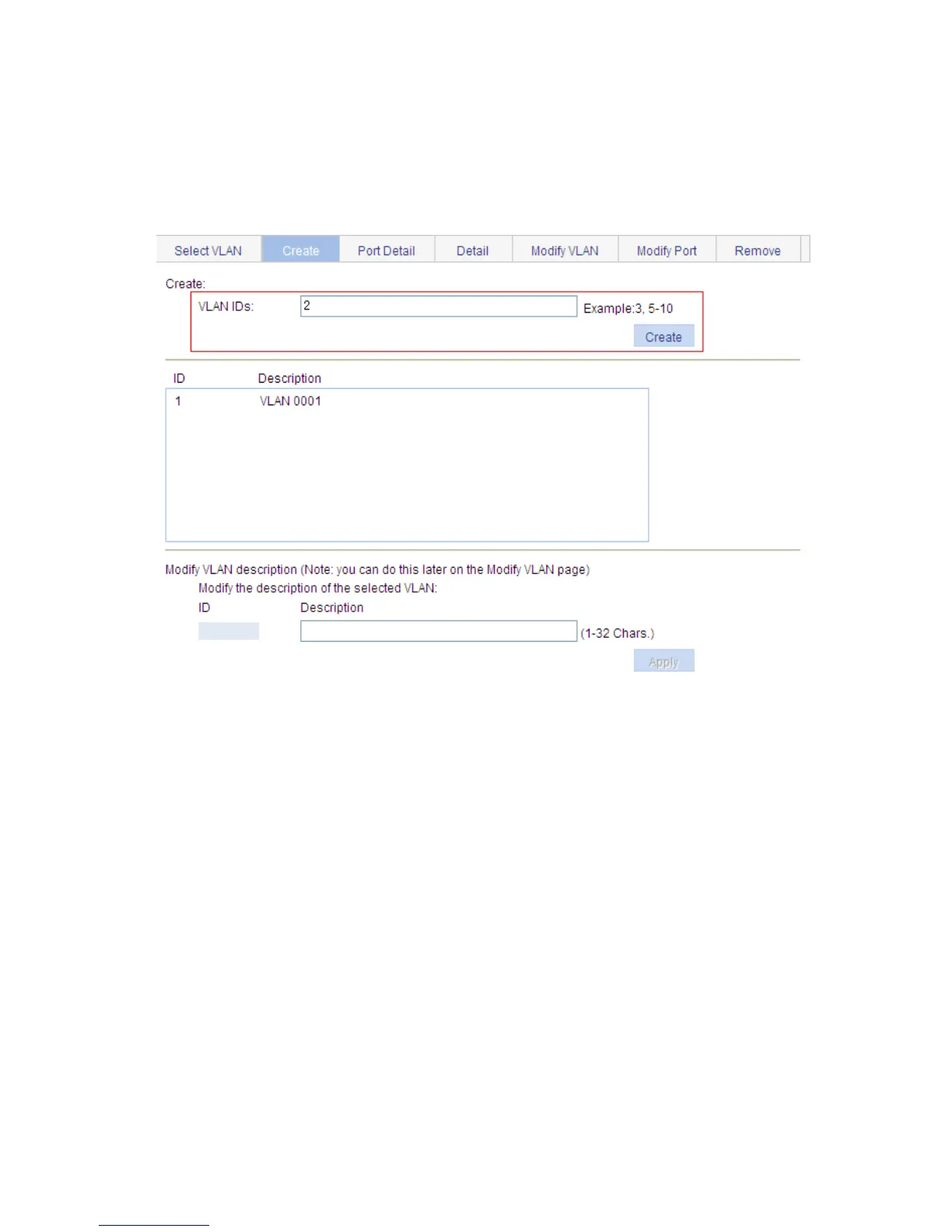

 Select Network  VLAN from the navigation tree, and click the Create tab to enter the page shown in
a.
a. Create VLAN 2
 Type VLAN ID 2.
 Click Create.
# Configure GigabitEthernet 1/0/1 as a hybrid port and configure its PVID as VLAN 2.
 Select Device  Port Management from the navigation tree, and click the Setup tab to enter the page
shown in b.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
