167

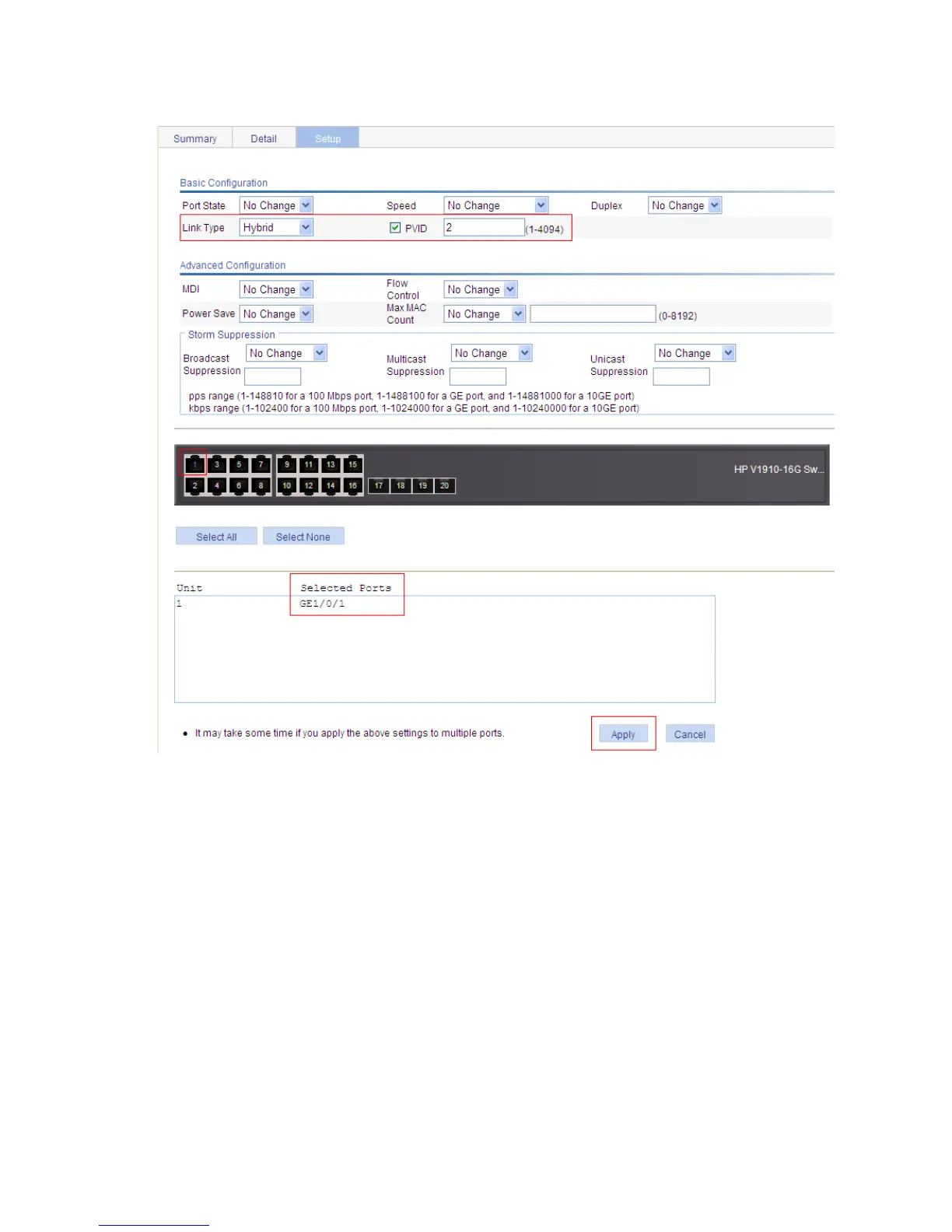

b. Configure GigabitEthernet 1/0/1 as a hybrid port
Select Hybrid from the Link Type drop-down list.
Select the PVID option and type 2 in the text box.
Select GigabitEthernet 1/0/1 from the chassis front panel.
Click Apply.
# Assign GigabitEthernet 1/0/1 to VLAN 2 as an untagged member.
Select Network VLAN from the navigation tree, and click the Modify Port tab to enter the page
shown in c.
