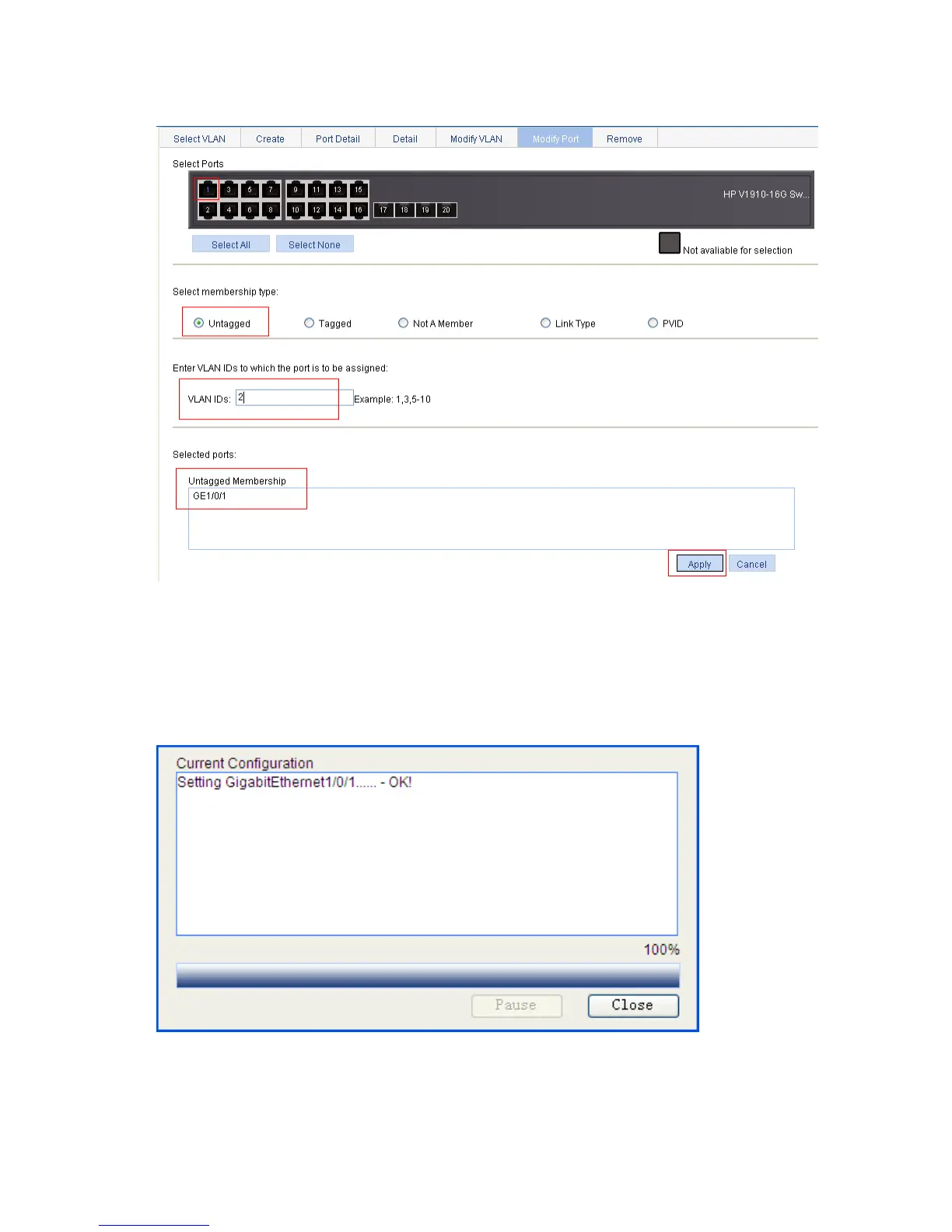

c. Assign GigabitEthernet 1/0/1 to VLAN 2 as an untagged member
Select GigabitEthernet 1/0/1 from the chassis front panel.
Select the Untagged option.
Type VLAN ID 2.
Click Apply. A configuration progress dialog box appears, as shown in d.
d. Configuration progress dialog box
After the configuration process is complete, click Close.
# Configure voice VLAN on GigabitEthernet 1/0/1.
