HP V1910 User Manual

170

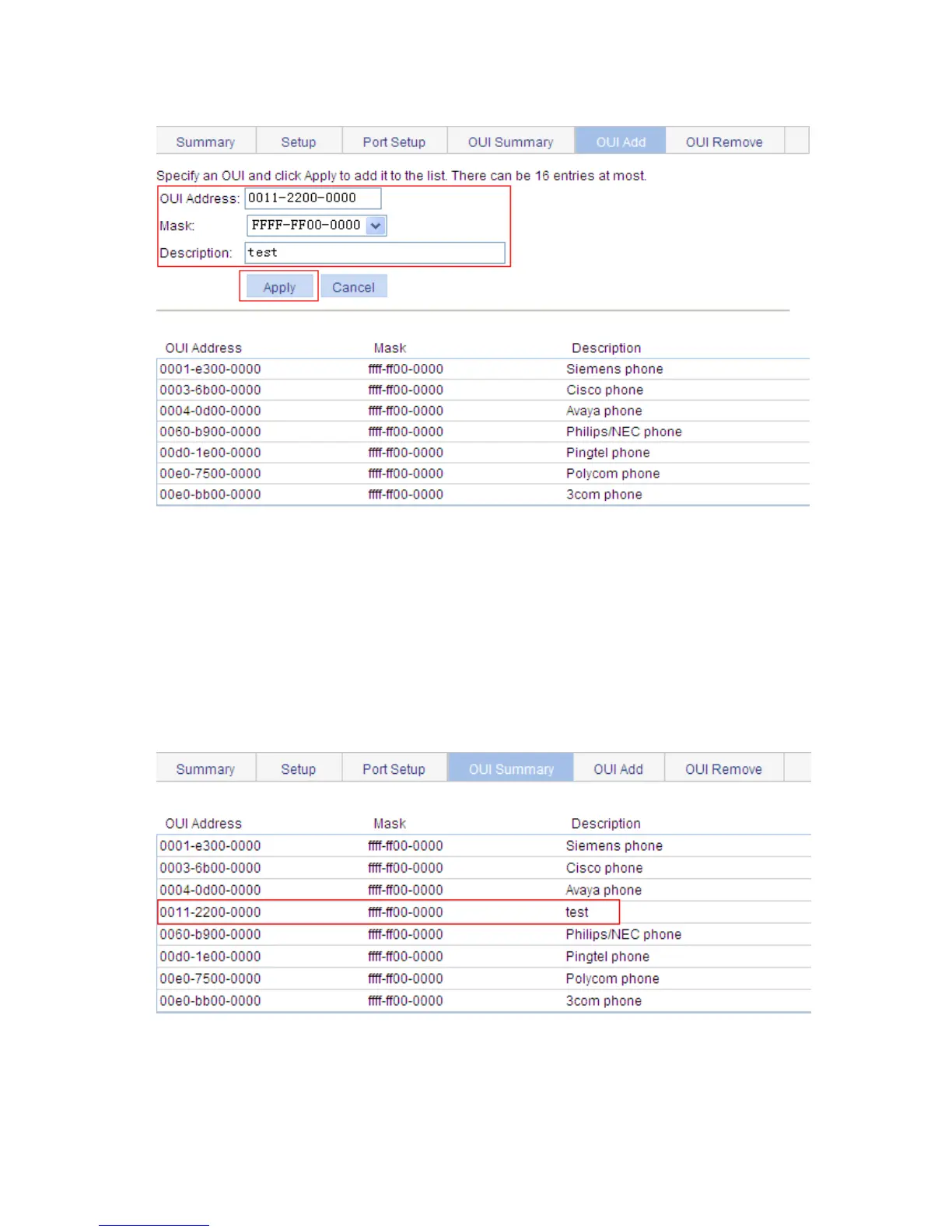

f. Add OUI addresses to the OUI list
 Type OUI address 0011-2200-0000.
 Select FFFF-FF00-0000 from the Mask drop-down list.
 Type description string test.
 Click Apply.
Verify the configuration
 When the configurations are completed, the OUI Summary tab is displayed by default, as shown in a.
You can view information about the newly-added OUI address.
a. Current OUI list of the device
 Click the Summary tab to enter the page shown in b, where you can view the current voice VLAN
information.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
