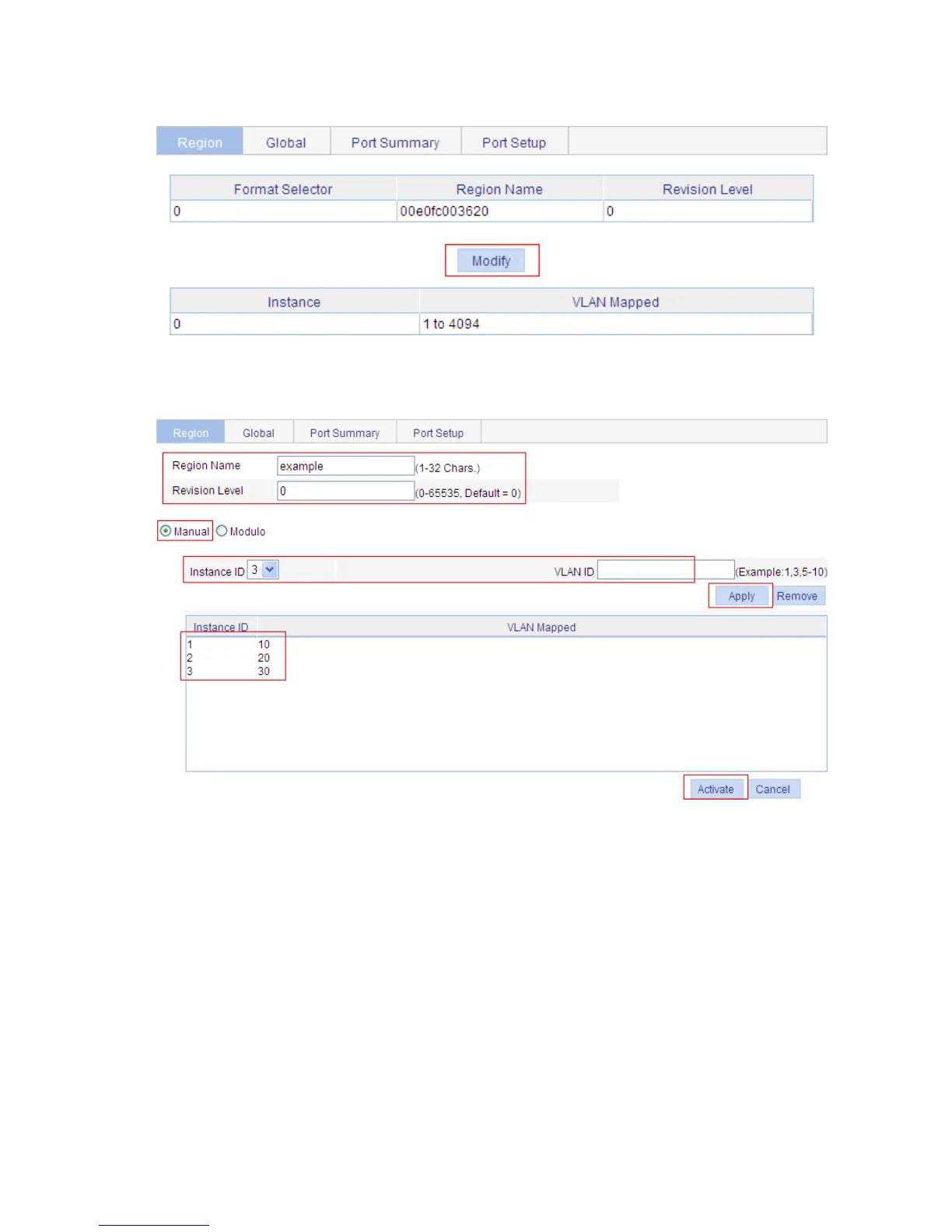

b. The Region tab
Click Modify to enter the page shown in c.
c. Configure an MST region
Type the region name example.
Set the revision level to 0.
Select the Manual option.
Select 1 in the Instance ID drop-down list.
Type the VLAN ID 10.
Click Apply to map VLAN 10 to MSTI 1 and add the VLAN-to-MSTI mapping entry to the VLAN-to-MSTI
mapping list.
Repeat the previous steps to map VLAN 20 to MSTI 2 and VLAN 30 to MSTI 3, and add the
VLAN-to-MSTI mapping entries to the VLAN-to-MSTI mapping list.
Click Activate.
# Configure MSTP globally.
