HP V1910 User Manual

201

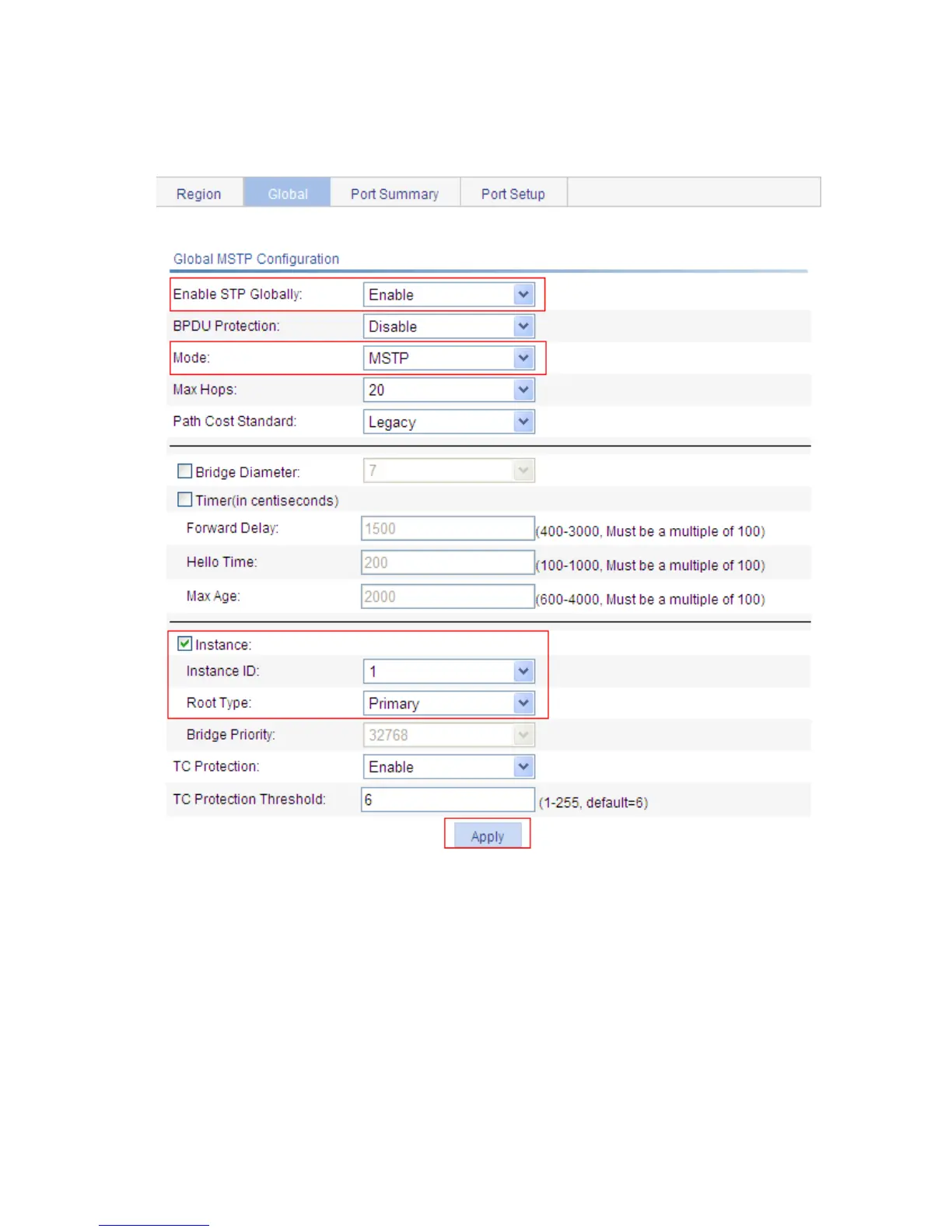

 Select Network  MSTP from the navigation tree, and click the Global tab to enter the page shown in
d.
d. Configure MSTP globally (on Switch A)
 Select Enable in the Enable STP Globally drop-down list.
 Select MSTP in the Mode drop-down list.
 Select the Instance option.
 Type the Instance ID 1.
 Select Primary in the Root Type drop-down list.
 Click Apply.
Table 49 Configure Switch B.
# Configure an MST region. The procedure is the same as that of configuring an MST region on Switch A.
# Configure MSTP globally.

HP V1910 Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
Manageable	Yes
Form Factor	Rack-mountable
Features	VLAN, QoS, Link Aggregation
Operating Temperature	0°C to 45°C
Operating Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000 + 4 x SFP
